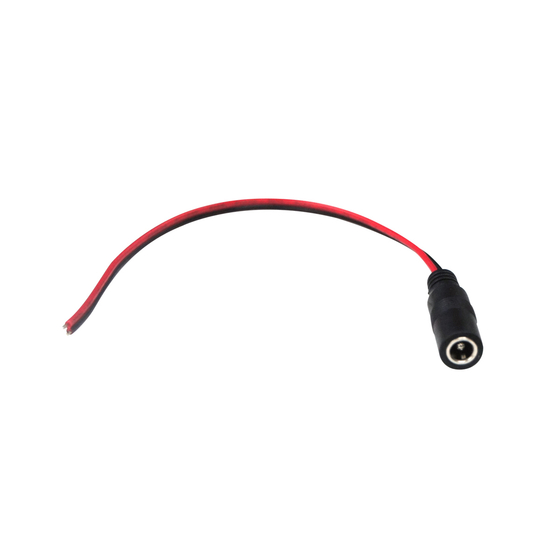

Red and black cable with a 5.5×2.1mm DC jack.
● It features a red and black DC jack connector with bare wire (unprocessed termination) specifications. It can be freely connected using soldering, terminal blocks, one-touch connectors, and more. ● It adopts a 20AWG (approximately 0.5sq) flat type in compliance with UL2468 standards, making it flexible, easy to handle, and excellent for routing. ● With a length of 20cm, it minimizes voltage drop and ensures stable power supply. ● Designed for indoor use, it can be widely utilized as a power cable for various DC devices.
Inquire About This Product
basic information
Specification: UL2468 Rated Voltage: 300V Rated Temperature: 80℃ Allowable Current Estimate: Approximately 3A Flame Resistance: VW-1 (compliant with UL standards), FT1 (compliant with CSA standards) Conductor Size: 20AWG (approximately 0.5sq) Conductor Composition: 26 strands / 0.16mm (stranded wire) Conductor Material: Copper (soft copper wire) Number of Cores: 2 cores Insulation Material: PVC (polyvinyl chloride) Cable Outer Diameter (OD): Approximately 3.6 mm × 1.8 mm Connector (DC Jack): Outer diameter φ5.5 mm / Inner diameter φ2.1 mm Cable Length: 0.2m (20cm), with minimal voltage drop, ensuring safe usage.
Price range
Delivery Time
Applications/Examples of results
Power connection for devices compatible with DC 5V to 24V, security cameras, LED lights, electronic projects, and DIY electrical work.
