While leveraging the potential for XL size compatibility, we will also integrate the production of M size boards into one machine to maximize factory utilization.
◎ "Line Utilization Rate" and "Investment Optimization" - Multi-operation to avoid idle large dedicated machines: During the production of XL-sized boards, which can fluctuate based on order conditions, we can run high-volume M-sized boards on the same line. This thoroughly eliminates the "non-operating time" of expensive large equipment. - Immediate response to future product design changes: Even if M-sized products are mainstream now, we ensure a smooth transition to larger screens or larger boards (XL size) in the future without additional capital investment, providing "peace of mind for the future." ◎ Excellent "Dual-purpose Precision" and "Reliable Transport" - High precision supply that remains stable despite size changes: Even with large equipment, the positioning of small items like M-sized boards and the pitch feeding of magazines are controlled with extreme precision. We supply boards with high repeat accuracy that is independent of size. - One-touch switching to eliminate setup losses: The setup work required for size changes is completed through the system or touch panel. This eliminates the need for mechanical adjustments, significantly reducing the operator's burden and setup time.
Inquire About This Product
basic information

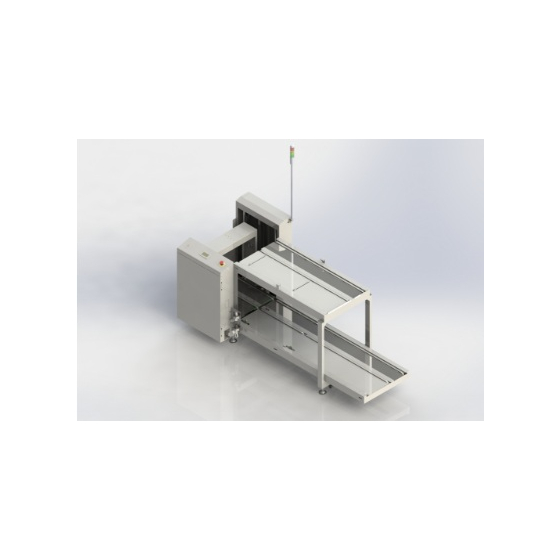

【Features】 - Equipped with magazine supply mode switching function - Selectable starting position for magazine supply: upper or lower - One-touch magazine switching - One-touch switching between M magazine and L magazine - Capable of automatic stage change PCB transport direction: Right to Left (Left to Right) PCB transport reference: Front side (Back side) PCB transport height: 900+50-25 (mm) Compatible PCB dimensions: W50～460mm * L50～510mm PCB thickness: 0.5～2.0mm Supply pitch: 1 to 4 stages Mounted magazines: 2 on the upper level and 3 on the lower level or 2 on the upper level and 2 on the lower level Power supply: AC100V Air: 0.5MPa * Compatible with M/L even in suction combined type * Please note that specifications and appearance may change without prior notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in implementation lines, inspection machine lines, coating machine lines, laser lines, etc. There are many achievements in EMS (Electronic Manufacturing Services) companies and production departments of various equipment manufacturers.
Detailed information
-
Drawing
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
