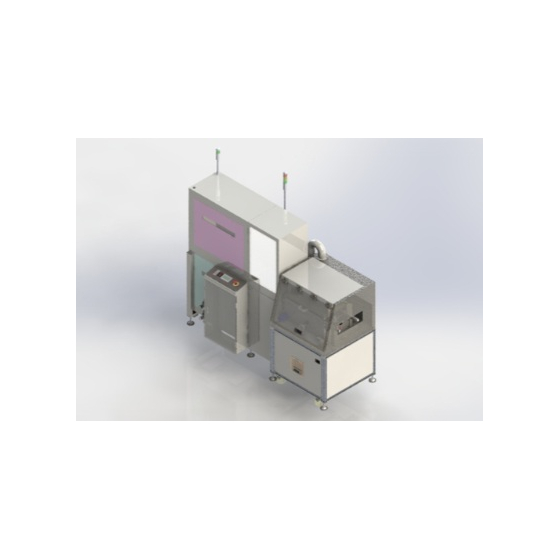

The bottleneck after coating is reduced to zero. By directly connecting the coating machine, we simultaneously dry and store the liquid agent, maximizing space efficiency and production efficiency on the line.
◎ "Direct Connection to the Process" and "Space Saving" - Immediate drying and curing right after the applicator: The substrate is accepted immediately after application with dispensers, allowing for efficient drying while being stored. This prevents drips and smudges of the liquid agent, maintaining high coating quality. - Elimination of long conveyors and drying ovens: There is no need for long buffer lines for drying or large separate drying ovens. This dramatically shortens the total length of the coating line and effectively utilizes limited factory space. ◎ "Quality Stability" and "Non-Stop Operation" - Preventing uneven drying of the liquid agent through airflow control: The hot air (ambient temperature) inside the device is controlled to dry without putting unnecessary stress on the coated surface. This suppresses the generation of bubbles and whitening phenomena caused by rapid solvent evaporation. - Maintaining coating cycle time: Substrates are continuously stored in the magazine without stopping as they are discharged one after another from the applicator. The drying time is absorbed within the device, preventing downtime in the preceding and following processes.
Inquire About This Product
basic information
【Features】 - Equipped with a hot air generator. Increases the internal temperature of the device, reducing the drying time of the substrates stored in the magazine. - Waiting time can be set for each magazine rack. - Balances substrate storage and drying, improving productivity. - Internal temperature of the device is 60 degrees (ambient temperature). Substrate transport direction: Right → Left (Left → Right) Substrate transport reference: Front side (Back side) Substrate transport height: 900 +50 -25 (mm) Compatible substrate dimensions: W50–250mm * L50–330mm Substrate thickness: 0.5mm–2.0mm Supply pitch: 1–9 levels Installed magazines: 2 on the upper level and 2 on the lower level or 3 on the upper level and 3 on the lower level Power supply: AC200V Air: 0.5MPa *Please note that specifications and appearance may change without notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Mainly used in coating machine lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
