Efficiently streamline the double-sided assembly line with smooth front-and-back inversion.
◎ "Smooth Inversion" and "Pass-Through Function" - Shock-absorbing front-and-back inversion mechanism: Smoothly inverts the front and back of delicate mounted circuit boards. By minimizing vibrations and shocks during inversion, it prevents misalignment and detachment of components, ensuring safe transfer to the next process. - Equipped with a pass-through function that allows flow without inversion: It features a "pass-through function" that is effective for single-sided mounting that does not require inversion or when you want to let specific circuit boards pass through as they are. This allows for flexible adaptation to various production processes while keeping the line layout fixed.
Inquire About This Product
basic information

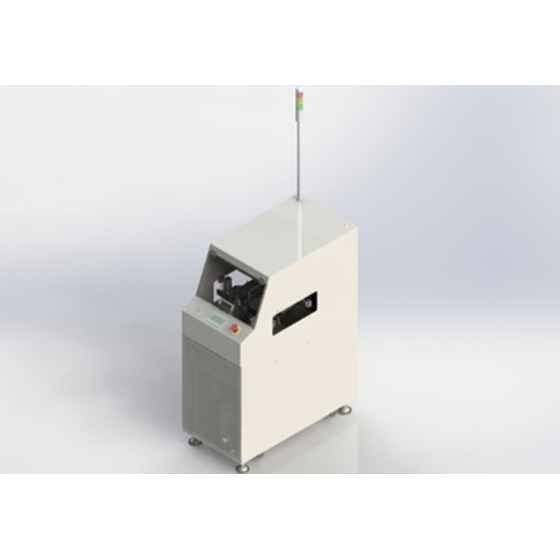

【Features】 - Smooth flipping of the board between the front and back is possible - Effective utilization with line layout - Pass-through function available Board transport direction: Right → Left (Left → Right) Board transport reference: Front side (Back side) Board transport height: 900±20 (mm) Supported board dimensions: W50～250mm * L70～330mm Board thickness: 0.5mm～2.0mm Power supply: AC100V±10V (50/60Hz) Air: 0.5MPa *Please note that specifications and appearance may change without prior notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in implementation lines, inspection machine lines, coating machine lines, laser lines, etc. There are many achievements in EMS (Electronic Manufacturing Services) companies and production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
