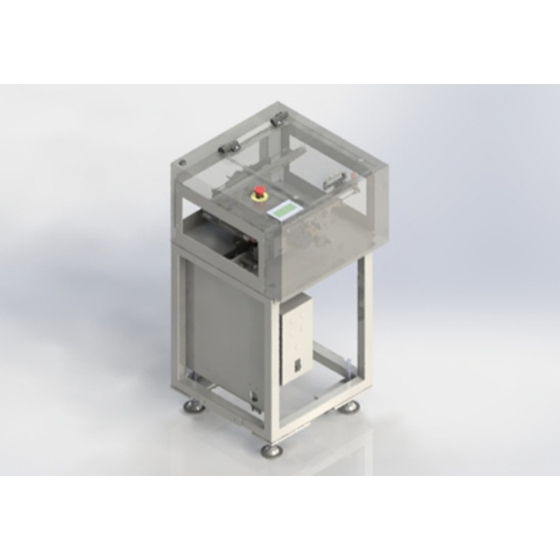

Change the orientation of the substrate by 90 degrees and build a flexible line in a limited space.
■ "Direction Change" and "Space Utilization" - The transport direction of the substrate is smoothly rotated 90 degrees. This is suitable for cases where the production line cannot be arranged in a straight line due to the layout of the factory, or when you want to effectively utilize limited floor space by bending at right angles. ■ "Automation" and "Safety Design" - It supports automatic changeover that facilitates smooth switching of product numbers during multi-product production. Additionally, it is equipped with a safety cover as standard to prevent contact and foreign object intrusion during rotation, allowing on-site operators to operate with peace of mind.
Inquire About This Product
basic information
【Features】 - The substrate transport direction is rotated 90 degrees. - Effective when the line is not straight. - Capable of automatic stage change. - Safety. - Standard safety cover included. Substrate transport direction: Right → Left (Left → Right) Substrate transport reference: Front side (Back side) Substrate transport height: 900±20 (mm) Compatible substrate dimensions: W50–250mm * L70–330mm Substrate thickness: 0.5mm–2.0mm Power supply: AC100V±10V (50/60Hz) Air: 0.5MPa *XL size is also compatible. *Please note that specifications and appearance may change without notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in various production lines such as implementation lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
