Data collector "PPM D1J_100" and "PPM D1J_101" have obtained JC-STAR compliance label ★1 (Level 1)!

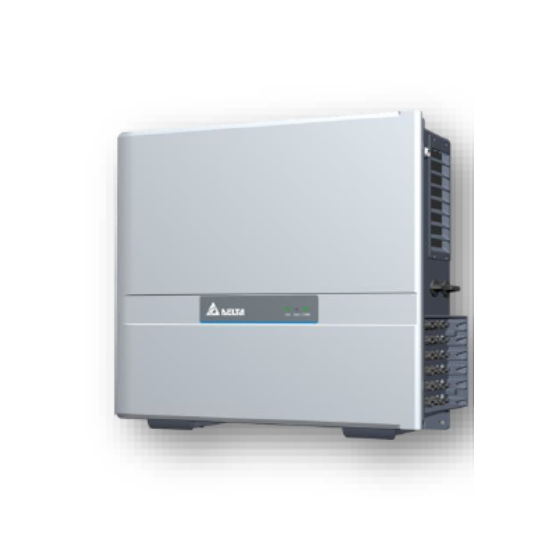

We would like to inform you about the JC-STAR compatibility of the Delta three-phase 50kW power conditioner "M50A_260" as follows. ■ Target Model Product Name: Three-Phase Power Conditioner Model Number: M50A_260 Rated Output: 50kW 1. Regarding Communication Method This product does not have external communication capabilities using IP (Internet Protocol) on its own and adopts a communication method using Modbus RTU (RS-485). Therefore, this product cannot be directly connected to the internet by itself. 2. Connection with Data Collector This product is compatible with our data collector "PPM D1J_100," which has obtained the JC-STAR compliance label ★1 (Level 1). Please note that the power monitor "PPM R3J_0B5" (for full purchase) has not yet obtained the JC-STAR compliance label at this time. If JC-STAR compatibility is required, please consider switching to the data collector "PPM D1J_100." We will provide further information regarding the JC-STAR compatibility of the power monitor "PPM R3J_0B5" as soon as preparations are complete.
Inquire About This Product
basic information
【Product Features】 ■ Maximum Input Voltage: DC1100V ■ Number of Input Circuits/MPPT: 12 circuits/6 MPPT ■ MPPT Voltage Range: DC200 to DC1000V ■ Maximum Conversion Efficiency: 98.33% ■ Protection Rating: IP65 ■ Dimensions: 699×629×264mm ■ Weight: 64kg *For more details, please download the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
■Ideal for PC replacement of existing high-voltage power plants (12 circuit input) *For more details, please download the catalog or feel free to contact us.
