For ceramic parts for metering pumps, we achieve high quality, customization, and stable supply through precision machining technology and integrated production.
Our company offers ceramic plungers and cylinder ceramic valves for metering pumps, utilizing advanced precision machining technology. By employing alumina-zirconia ceramics, we achieve excellent wear resistance, chemical resistance, and smooth sliding properties. With high dimensional accuracy and reliability that support precise fluid control, these components are used in metering pumps for medical devices such as specimen testing equipment and artificial dialysis machines. Furthermore, our integrated production system, from raw materials to precision machining and inspection, ensures high quality and stable supply. *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information

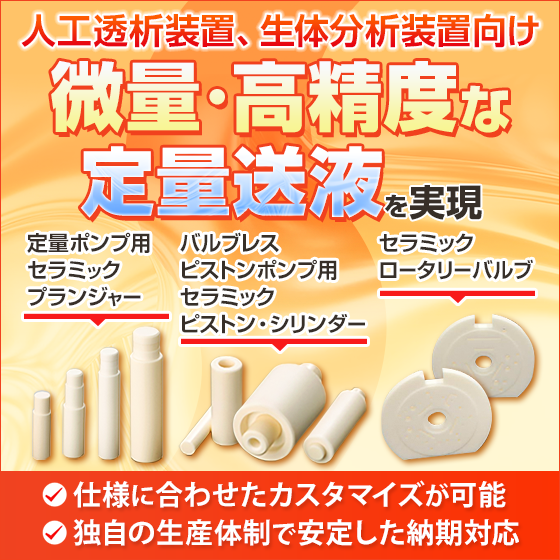

**Features of Ceramic Plungers for Quantitative Pumps** - Made of high-purity alumina ceramics (Al2O3 99.5% or higher) - Made of zirconia ceramics (Y-TZP) - Low surface roughness (Ra 0.1 or less), minimal friction, suitable for medical fluids - Structural ceramics possess wear resistance, chemical resistance, thermal stability, and are non-porous - A production system specialized for pump components enables stable delivery times **Features of Ceramic Pistons (Plungers) and Cylinders for Valve-less Quantitative Pumps** - Made of high-purity alumina ceramics (Al2O3 99.5% or higher) - The clearance between the piston and cylinder is ultra-high precision at 5.0μm or less - The piston and cylinder slide smoothly with low friction due to precise manufacturing technology - Proven materials and products in the market (long production track record) **Features of Ceramic Rotary Valves for Quantitative Pumps** - Made of high-purity alumina ceramics (Al2O3 99.5% or higher) - Resistant to corrosion from acids, alkalis, cleaning solutions, blood, reagents, etc. - Provides chemical resistance, wear resistance, and long life required for analytical instruments - Achieves high quantitative accuracy required for microfluid control and stable sliding performance over long periods
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Quantitative pump for biochemical automatic analyzers ■Quantitative pump for hematology analyzers ■Quantitative pump for immunoassay analyzers ■Quantitative pump for genetic testing devices ■Quantitative pump for artificial dialysis machines ■Quantitative pump for HPLC devices *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company has established a stable business foundation by balancing a wide range of fuels, from industrial fuels for factories to automotive fuels through the expansion of gas stations. Furthermore, while developing our business centered around fuel, we are evolving into a flexible service provider that can meet the diverse needs of our customers. In the manufacturing sector, we are expanding our business into growth areas such as the production of new material fine ceramics and the recycling of waste oil and sludge. Additionally, as a new business initiative, we are also granulating high melting point spherical powders for metal 3D printers. [Key Focus Areas] ■ Manufacturing of ceramic components ■ Granulation of metal powders for 3D printers using plasma melting
