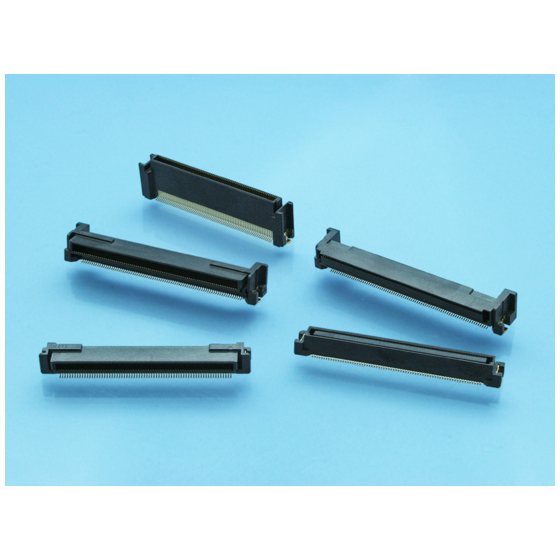

0.635mm pitch 2-piece connector, 8600 series
This series features characteristics such as "compact," "multi-pole," and "high reliability," making it an optimal product that contributes to the miniaturization and high performance of equipment. It is designed with high quality required for industrial connectors and eliminates play during mating. It guarantees 500 mating cycles and ensures an effective mating length of 2mm, achieving high contact reliability. Additionally, it provides a definite click feel during mating and has a structure that is resistant to misalignment. The connector includes a mis-insertion prevention mechanism to prevent reverse insertion due to its molded shape. Various innovations have been implemented, such as ensuring suction space for automatic mounting (the plug-side connector comes with a pickup cover), resulting in a user-friendly product. The number of poles available includes 52, 120, 140, and 160 poles in vertical direct connection, and 60 and 140 poles in stack connection. As part of the family of products, the 8622E series offers a 0.635mm pitch flat cable type with two layers, allowing for combinations with board-to-board connectors. This product serves as a next-generation connection solution, capable of meeting a wide range of needs in industrial equipment.
Inquire About This Product
basic information
This series features characteristics such as "compact," "multi-pole," and "high reliability," making it an optimal product that contributes to the miniaturization and high performance of equipment. It is designed with high quality required for industrial connectors and eliminates play during mating. It guarantees 500 mating cycles and ensures an effective mating length of 2mm, achieving high contact reliability. Additionally, it provides a definite click feel during mating and has a structure that is resistant to misalignment. It includes a mechanism to prevent incorrect insertion due to the molded shape of the connector, and it secures a suction space for automatic mounting (the plug-side connector comes with a pickup cover), incorporating various innovations to create a user-friendly product. The number of poles available includes 52, 120, 140, and 160 poles for vertical stacking connections, and 60 and 140 poles for stacked connections. As part of the family of products, a 0.635mm pitch flat cable type with two layers, the 8622E series, is also available, allowing for combinations with board-to-board connectors. This product serves as a next-generation connection solution, capable of meeting a wide range of needs in industrial equipment.
Price information
-
Delivery Time
Applications/Examples of results
−
