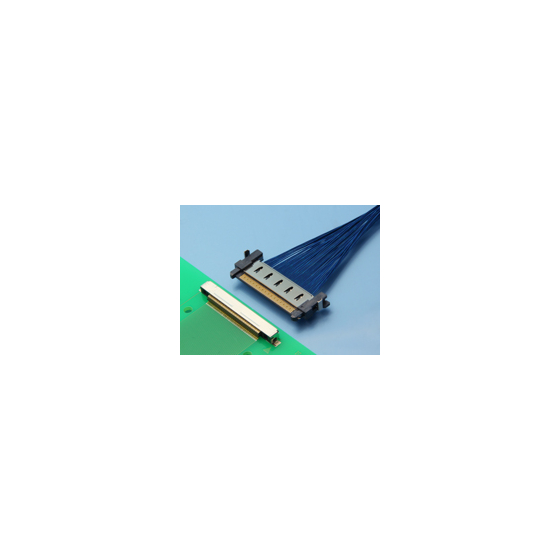

High-speed transmission connector compatible with TMDS and LVDS - TMC series
The TMC series supports high-speed differential transmission (TMDS, LVDS) and is suitable for internal wiring in devices. Despite its narrow pitch of 0.5mm, it ensures an effective mating length of 1mm, making it a product with excellent contact reliability. Differential transmission is characterized by its resistance to noise generation and external noise. The TMC series features a metal shell that envelops the entire connector, providing excellent EMI countermeasures. Additionally, the encompassing metal shell ensures connector strength. The metal shell also serves as a locking mechanism, allowing for smooth and secure mating, along with simple and good operability. The "TMC series" is compatible with ultra-thin coaxial cables "AWG#36," "AWG#38," and "AWG#40." *Please consult in advance if considering the use of AWG#36. It is also compatible with discrete cables "AWG#36" and "AWG#38." Furthermore, it is possible to use ultra-thin coaxial cables and discrete cables in combination. While this product excels in noise countermeasures, it is also possible to stabilize transmission characteristics by connecting the ground bar to the bottom shell of the connector and grounding it to the circuit board through the ground terminal.
Inquire About This Product
basic information
The TMC series supports high-speed differential transmission (TMDS, LVDS) and is suitable for internal wiring in devices. Despite its narrow pitch of 0.5mm, it ensures an effective mating length of 1mm, making it a product with excellent contact reliability. Differential transmission is characterized by its resistance to noise generation and external noise. The TMC series features a metal shell that envelops the entire connector, providing particularly excellent EMI countermeasures. Additionally, the encompassing metal shell ensures connector strength. The metal shell also serves as a locking mechanism, allowing for smooth and secure mating, as well as simple and good operability. The "TMC series" is compatible with ultra-thin coaxial cables "AWG#36," "AWG#38," and "AWG#40." *Please consult in advance if considering the use of AWG#36. It is also compatible with discrete cables "AWG#36" and "AWG#38." Furthermore, it is possible to use ultra-thin coaxial cables and discrete cables in combination. While this product excels in noise countermeasures, it is also possible to stabilize transmission characteristics by connecting the ground bar to the bottom shell of the connector and grounding it to the circuit board via the ground terminal.
Price information
-
Delivery Time
Applications/Examples of results
This product is suitable for internal wiring of devices such as flat-screen TVs (LCD, PDP, rear projection), PCs, office equipment, and medical devices.
