Thin and flexible electrodes for electrocardiogram measurement.

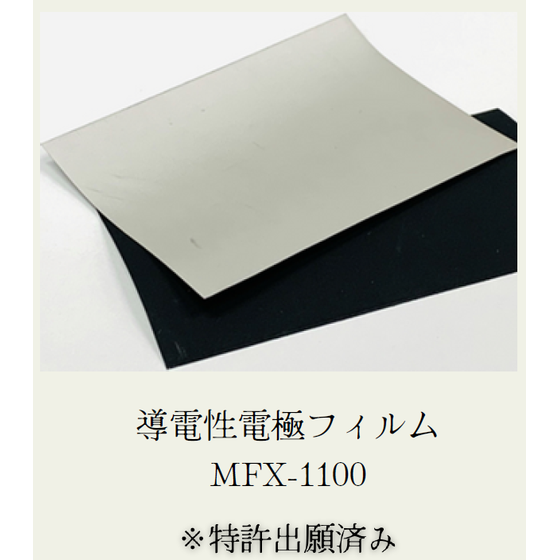

For the development of ECG electrodes and patient monitoring electrodes. SilkyLink uses a thin, flexible polyurethane substrate, making it suitable for prototyping and evaluation as a biopotential electrode film that easily conforms to body movements. SilkyLink MFX-1100 is a thin, flexible electrode material formed by creating a silver/silver chloride (Ag/AgCl) electrode layer on a conductive polyurethane film. It can be cut and punched into the required shapes, allowing for prototyping and product development without the need to establish in-house processes for electrode formation such as paste formulation, printing, and drying. While silver/silver chloride paste (Peltron K-398X) can be "freely printed and made," SilkyLink is characterized by being "pre-made with functional layers and ready to use." It can be handled at low temperatures and is suitable for a wide range of applications, from ECG, EMG, and EEG to defibrillation pads.
Inquire About This Product
basic information
【Do you have such needs?】 ○ There are issues with the stability, quality, and cost of the current electrode film supply. ○ I want to develop electrodes that follow the movement of the body. ○ I want to keep the electrodes attached during X-ray examinations. ○ I want to easily create electrodes by cutting them to the necessary size and shape. 【Features of this film】 ・Maintains low skin-electrode impedance even with long-term use. ・Can be used for X-ray imaging without using metal foil as the main substrate (internal evaluation). ・High adhesion of the silver/silver chloride coating, making it difficult to peel off. ・High flexibility with a polyurethane substrate, allowing it to follow the movements of the human body. Representative specifications: Substrate polyurethane / Total thickness approximately 103μm / Ag/AgCl electrode layer approximately 3μm / Surface resistance approximately 0.8Ω/sq *All values are representative. Official specifications, measurement methods, and warranty scope will be provided in individual technical documents.
Price range
Delivery Time
Applications/Examples of results
[Medical] Defibrillator (AED) pads, electrocardiogram (ECG), electromyogram (EMG), and electroencephalogram (EEG) electrodes, patient monitoring electrodes [Wearable] Biopotential electrodes for curved and freeform devices [Environment & Agriculture] Environmental monitoring, plant biopotential measurement (joint research achievements with Okayama University) etc.
Detailed information
-
We have fused three know-hows.
