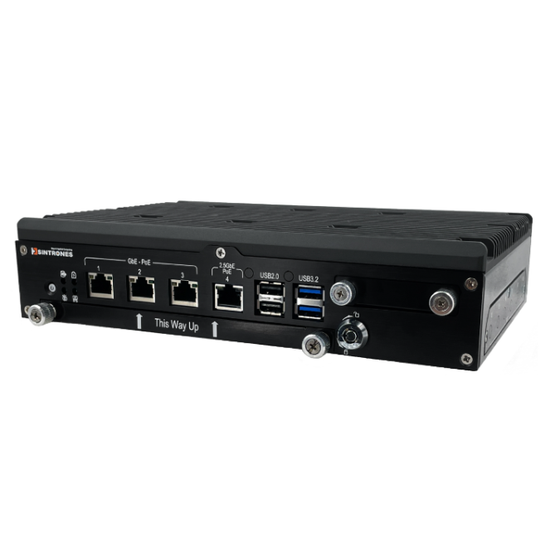

Intel Core Ultra Series 3 Processor, embedded PC for railway and automotive applications, certified to railway standard EN50155.
**[SINTRONES VBOX-3650(P)-(M12X) Features]** ■ Dimensions: 160mm wide × 55mm high × 250mm deep, 2.2 liters ■ Equipped with Intel Core i7 / i5 / i3 Series 3 processors ■ Built-in NPU for AI processing ■ Supports DDR5-6400 SO-DIMM up to 64GB ■ Equipped with 2.5GbE×1 + GbE×4 ■ Achieves robust network connectivity with M12 X-code connector compatible model ■ Three video outputs via HDMI, DVI-D, and USB Type-C DP ■ Equipped with 2×CAN FD, RS-232/422/485×2, DIO (DI×6 / DO×4) ■ Supports M.2 NVMe SSD×2, M.2×2 for WWAN, M.2×1 for Wi-Fi/BT ■ Equipped with TPM 2.0 (FIPS 140-3 compliant) ■ Includes watchdog timer and smart power management features ■ Supports a wide power input range of DC 9-60V ■ Compatible with optional BBU (Battery Backup Unit) ■ Fanless aluminum chassis ■ Wide temperature operation range of -40 to 70°C ■ Wall mountable
Inquire About This Product
basic information
Specifications ■CPU: Intel Core i7 350 / Core i5 320 / Core i3 304 ■Memory: DDR5-6400 SO-DIMM x1, maximum 64GB ■Storage: M.2 2280 Key M NVMe SSD x2 ■I/O Connectors: 2.5GbE x1, GbE x4, HDMI x1, DVI-D x1, USB Type-C DP x1, USB 3.2 x2, USB 2.0 x2, RS-232/422/485 x2, CAN FD x2, DI x6, DO x4, isolated DO x1 ■Input Power: DC 9-60V input (3-pin terminal block / M12 K-code) ■Operating Temperature: -40 to 70°C (with airflow, 0.6m/s) ■Certifications: CE, FCC Class A, UKCA, E-Mark, EN 62368-1, EN 50155, EN 45545-2 (R25), CISPR 2 ■OS: Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS or later
Price information
Open price
Price range
P3
Delivery Time
P4
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
catalog（1）
Download All Catalogs
Company information
Currently, Taiwan has become a global supply base for industrial electronic equipment, and we aim to contribute to the development of Japanese industry by providing excellent industrial electronic equipment from Taiwan to Japanese engineers. As a specialized trading company for industrial electronic equipment, we will supply the necessary industrial electronic devices (LCD displays, LCD modules, embedded PCs, AI embedded PCs, panel PCs, CPU boards, measurement and control boards, network devices, video equipment, GPS devices, wireless transmission devices, IoT sensors) to engineers.
