Award, equipped with Jetson Orin NX Super/Nano Super, extended temperature -20 to 65°C, completely waterproof and dustproof IP66.

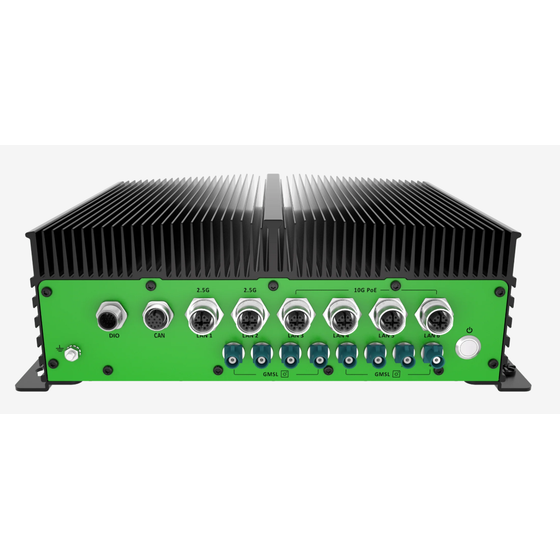

【WCO-3000-ORN-A Features】 ■ Width 250 × Height 75 × Depth 170 mm ■ Equipped with NVIDIA Jetson Orin NX Super / Nano Super ■ IP66 compliant dustproof and waterproof design ■ Equipped with 2.5GbE×3 + GbE×1 M12 LAN ports ■ Equipped with 4 waterproof FAKRA-Z connectors for GMSL2 cameras ■ Supports 4-port PoE power supply (maximum 15W/port, total power supply 60W) *Optional ■ Equipped with USB 3.2 Gen 2×1, USB 2.0×1 ■ Equipped with isolated DIO (DI×4 / DO×4) ■ Equipped with RS-232/422/485×2, CAN 2.0B ■ Supports M.2 NVMe SSD, 4G/5G, Wi-Fi expansion ■ Supports TPM 2.0 ■ Wide range power input from DC 9 to 48V ■ AT/ATX power mode, ignition power management supported ■ Wide temperature operation from -20 to 65℃ *Varies by TDP ■ Built-in G-sensor and gyroscope ■ Fanless aluminum chassis ■ Wall mount compatible ■ EMC compliant with EN50155, EN50121-3-2, UL 62368-1 compliant
Inquire About This Product
basic information
Specifications ■AI Computing NVIDIA Jetson Orin NX Super / Nano Super ■GPU 1024-core NVIDIA Ampere architecture GPU (Nano 4G has 512-core) ■Memory NX Super 16G/8G, Nano Super 8G/4G ■AI Performance NX 16G: Up to 157 TOPS / NX 8G: Up to 117 TOPS / Nano 8G: Up to 67 TOPS / Nano 4G: Up to 34 TOPS ■Storage M.2 M Key 2242/2280, PCIe x4 NVMe ■I/O Connectors 2.5GbE×3, GbE×1, Waterproof FAKRA-Z×4, USB 3.2 Gen 2×1, USB 2.0×1, USB Type-C×1, Micro USB×1, HDMI×1, RS-232/422/485×2, CAN 2.0B×1, Isolated DI×4 / DO×4 ■Input Power DC 9–48V input (M12 5-pin K-code) ■Operating Temperature -20–50℃ (40W) / -20–60℃ (25W) / -20–65℃ (15W)
Price information
Open price
Price range
P3
Delivery Time
P4
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（1）
| Model number | overview |
|---|---|
| WCO-3000-ORN-A | WCO-3000-ORN-A Water Resistant Edge AI Computer powered by NVIDIA Jetson Orin Nano/NX Super |
