Supports operation up to 275℃! A resistor with a unique cross-electrode structure that contributes to the performance improvement of high-frequency amplifiers and high-speed current detection circuits through its non-inductive design.

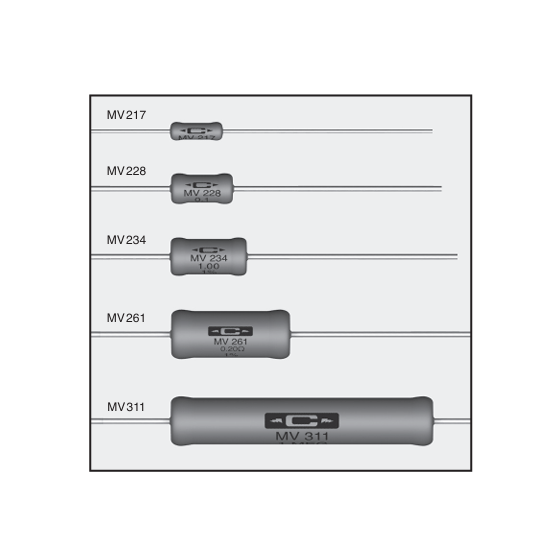

【Ultra-Low Resistance Power Resistor Ideal for High-Frequency and High-Speed Current Detection】 The 'Type MV' from Cadock, USA, is a low-resistance, high-power axial lead resistor that combines a unique non-inductive design with Micronox(R) resistive film technology. 【Main Features】 - Unique Non-Inductive Structure: The interdigitated terminations allow for parallel current distribution, achieving both low resistance values and excellent non-inductive performance. - Excellent Heat Resistance: A silicon-based protective coating enables operation at high temperatures up to 275°C. - High-Frequency Characteristics: Dramatically improves responsiveness in high-frequency power amplifiers, high-speed video amplifiers, and switching circuits. - Wide Range of Power Ratings: Available in five sizes from 1.5W to 10W. 【Main Specifications】 - Power Ratings: 1.5W / 2.0W / 3.0W / 6.0W / 10.0W - Resistance Value Range: 0.1Ω to 50Ω - Resistance Tolerance: ±1% (standard), ±5%, ±10% - Maximum Operating Temperature: +275°C - Insulation Voltage: 800Vrms to 1,000Vrms
Inquire About This Product
basic information
For more details, please check the materials.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the materials.
