Supports limited installation space and integration into battery-powered devices!

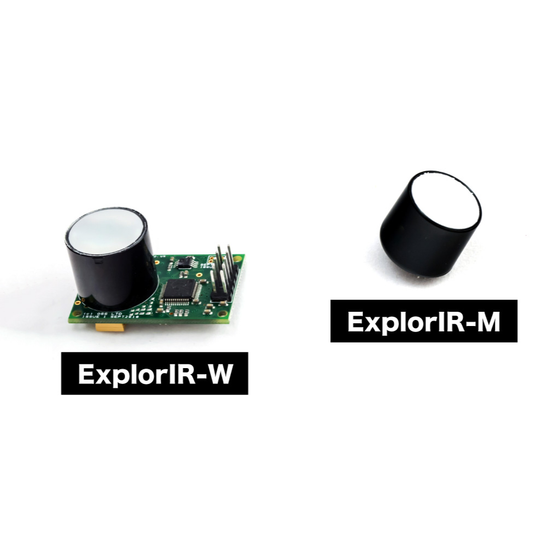

The "ExplorIR Series" is an NDIR-type CO2 sensor characterized by its compact size, low power consumption, and high concentration measurement capabilities. It supports measurements of up to 100% CO2 and achieves stable measurement accuracy over long periods through an automatic zero correction function. Additionally, it is equipped with a UART interface, making it easy to integrate into existing systems. 【Features】 ■ Adopts NDIR method with excellent long-term stability ■ Supports a wide measurement range of 0-5%, 0-20%, 0-60%, and 0-100% ■ Compatible with UART output for easy connection to microcontrollers and existing systems ■ Maintains long-term stability through automatic zero correction ■ Supports a quick response speed of 2Hz *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
【Common Specifications (Partial)】 ■Selectable Measurement Ranges: 0% to 5%, 0% to 20%, 0% to 100% ■Accuracy: ±(70 + 5% rdg) [ppm] ■Power Supply Voltage: MIN: -0.3[V] / MAX: +6.0[V] ■Operating Temperature Range: Standard: 0 to +50[℃], Extended: -25 to +55[℃] ■Humidity Range (Relative Humidity): 0 to 95% *No condensation *For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■ CO2 monitoring for agricultural equipment ■ Smart IoT ■ Food packaging machines ■ Transportation industry ■ Medical and healthcare *For more details, please download the PDF (English version) or feel free to contact us.
