Equipped with 13th generation Core processor, capacitive touch, dimmer function (0-100%), DNV certification (marine grade), front waterproof IP66.

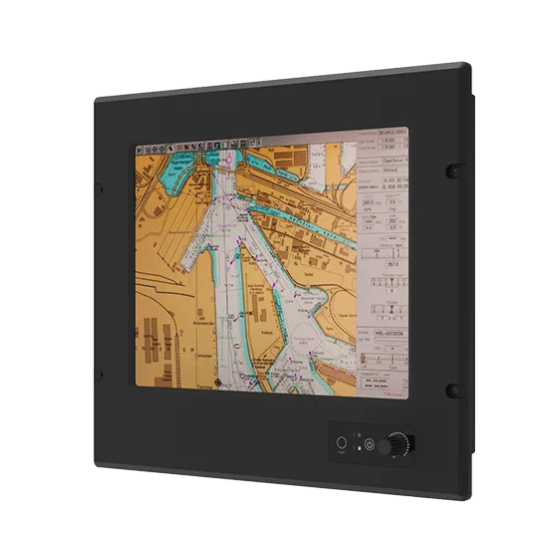

**Winmate R19IAD3S-MRM2FP Features** ■ 19" Resolution 1280x1024 ■ Equipped with Intel Core i5 i51335U Processor ■ Fanless operation ■ Memory: 8GB/16GB/32GB ■ Storage: 128GB/256GB/512GB/1TB/2TB ■ Supports 1 x HDMI ■ IP66 compliant aluminum panel mount enclosure with powder-coated finish ■ Quick access to functions and display control via capacitive touch keys (supports ECDIS DAY, DUSK, NIGHT mode switching) ■ Dimming brightness adjustment from 0-100% ■ Wide DC power supply with DC9-36V input ■ Certified for electronic chart information display, DNV, IEC60945, and IACS-E10 ■ Supports VESA/panel mount installation ■ Color correction for ECDIS compliance ■ Shock and vibration resistant ■ OS: Supports Windows 11 IoT Enterprise (64 bit)
Inquire About This Product
basic information
Specifications - CPU: Intel Core i5 1335U Processor - Memory: 8GB/16GB/32GB - Storage: 128GB/256GB/512GB/1TB/2TB - Physical Pixels: 1280x1024 - Display Area: 376.32 x 301.06 mm - LCD Panel Brightness: 350cd/m2 - Video Input: 1 x HDMI - IO Interface: 2 x USB3.0, 1 x USB2.0, 1 x RS232/RS422/485, 2 x 2.5 Giga LAN RJ45, 4 x NMEA 0183 Port - Enclosure: Front waterproof IP66, VESA/panel mount - Power Supply: DC 9V to 36V input power - Touch Function: Resistive touchscreen (RS232/USB) - Operating Temperature: -15 to 55℃ - Size/Weight: 429(W) x 382(H) x 72.8(D) mm / 7.8 kg - Warranty Period: 1 year - Certification/Standards: CE, FCC, DNVCG0339, IEC60945 4th, IACS E10
Price information
Open price
Price range
P3
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
