Elkhart Lake Pentium N6415 processor equipped, capacitive touch, DNV certification (marine grade) obtained, front waterproof IP66.

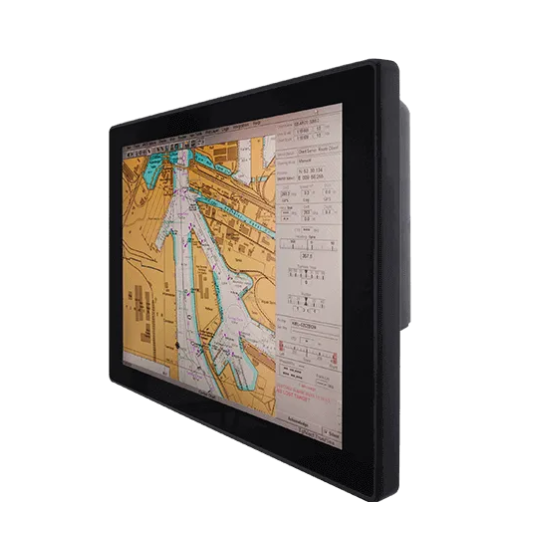

【Winmate W10IE3S-MRH2FP Features】 ■10.1" Resolution 1280 x 800 ■Dashboard panel PC equipped with Intel Elkhart Lake Pentium N6415 processor ■Fanless design ■Memory: 4GB/8GB/16GB ■Storage: 256GB/512GB ■Supports 1 x HDMI ■IP66 compliant aluminum panel mount enclosure with powder-coated finish ■Capacitive touch keys for quick access to functions and display control ■Dimming brightness adjustment from 0-100% ■Wide DC power supply with DC9-36V input ■Certified by DNV, IEC60945, and IACS-E10 ■Shock and vibration resistant ■OS: Compatible with Windows 11 IoT Enterprise (64 bit)
Inquire About This Product
basic information
Specifications - CPU: Intel Elkhart Lake Pentium N6415 Processor - Memory: 4GB/8GB/16GB - Storage: 256GB/512GB - Physical Resolution: 1280 x 800 - Display Area: 216.96 x 135.6 mm - LCD Panel Brightness: 350cd/m2 - Video Input: 1 x HDMI - IO Interface: 2 x USB3.2 Gen1x1, 2 x RS232(Default)/422/485, 2 x 2.5 Giga LAN RJ45 - Enclosure: Front waterproof IP66, VESA/panel mount - Power Supply: DC 9V–36V input power - Touch Function: Resistive touch (RS232/USB) - Operating Temperature: -15 to 55℃ - Size/Weight: 263.28 (W) x 172 (H) x 35.7 (D) mm / 3 kg - Warranty Period: 1 year - Certification/Standards: CE, FCC, DNVCG0339, IEC60945 4th, IACS E10
Price information
Open price
Price range
P3
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
