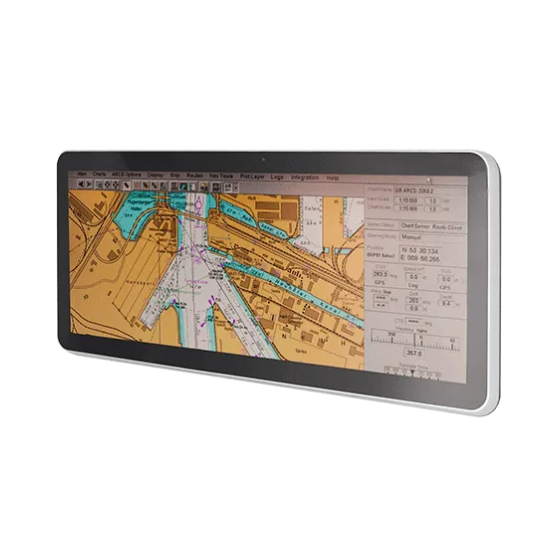

Elkhart Lake Pentium N6415 processor equipped, capacitive touch, DNV certification (marine grade) obtained, front waterproof IP66.
【Winmate W15IE3S-MRB1FP Features】 ■14.9" resolution 1920 x 720 ■Equipped with Intel Elkhart Lake Pentium N6415 processor dashboard panel PC ■Fanless design ■Memory: 4GB/8GB/16GB ■Storage: 256GB/512GB ■Supports high brightness of 950cd/m2 ■Supports 1 x HDMI ■IP66 compliant aluminum panel mount enclosure with powder-coated finish ■Capacitive touch keys for quick access to functions and display control ■Dimming brightness adjustment from 0-100% ■Wide DC power supply with DC9-36V input ■Certified by DNV, IEC60945, and IACS-E10 ■Shock and vibration resistant ■OS: Supports Windows 11 IoT Enterprise (64 bit)
Inquire About This Product
basic information
Specifications - Size: 12.3 inches - CPU: Intel Elkhart Lake Pentium N6415 processor - Memory: 4GB/8GB/16GB - Storage: 256GB/512GB - Physical resolution: 1920 x 720 - Display area: 355.68 x 133.38 mm - LCD panel brightness: 950 cd/m² - Video input: 1 x HDMI - IO interface: 2 x USB3.2 Gen1x1, 2 x RS232(Default)/422/485, 2 x 2.5 Giga LAN RJ45 - Enclosure: Front waterproof IP66, VESA/panel mount - Power supply: DC 9V to 36V input power - Touch function: Resistive capacitive touch (RS232/USB) - Operating temperature: -15 to 55℃ - Size/Weight: 400.1(W) x 187.6(H) x 59(D) mm / 4.8 kg - Warranty period: 1 year - Certification/Standards: CE, FCC, DNVCG0339, IEC60945 4th, IACS E10
Price information
Open price
Price range
P3
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs, video equipment, etc. on ships.
