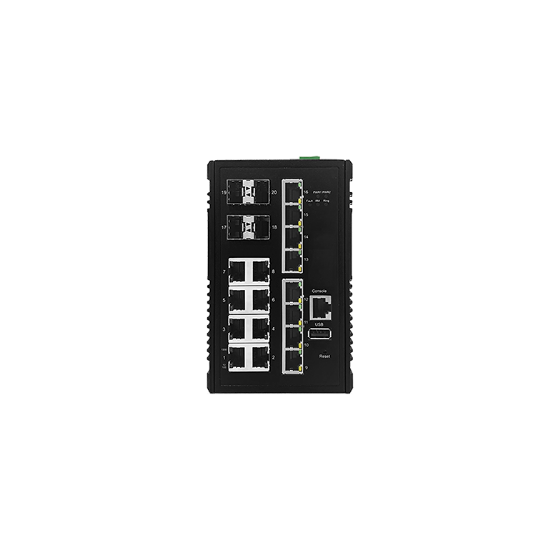

8-port Gigabit + 8-port SFP + 4-port 10GbE SFP+, 10GbE uplink compatible, extended temperature -40 to 75°C
【Konten MS-0812X Features】 ■ Equipped with 8-port Gigabit RJ45 + 8-port SFP + 4-port 1/10GbE SFP+ ■ Supports 10GbE uplink ■ Network redundancy via RSTP, MSTP, ERPS, LACP ■ Supports IEEE 1588v2 PTP ■ Supports QoS (CoS/DSCP) ■ IGMP Snooping v1/v2/v3, supports up to 1023 groups ■ Supports VLAN, Q-in-Q, 802.1X ■ Management via SNMP v1/v2c/v3, Web, Telnet, SSH, CLI ■ Supports EtherNet/IP, Modbus TCP, PROFINET ■ Supports DHCP Server/Client/Relay ■ Firmware updates and configuration backups via USB storage ■ Redundant dual power input (DC 12-48V) ■ MTBF over 100,000 hours ■ Wide temperature operation range of -40 to 75℃ ■ DIN rail mountable ■ IP30 aluminum housing
Inquire About This Product
basic information
Specifications ■Interface RJ45 Ports: 10/100/1000Base-T ×8 SFP+ Ports: 100/1000Base-X SFP ×8 SFP+ Ports: 1/10GbE SFP+ ×4 Total Number of Ports: 20 Ports Switching Method: Store and Forward ■Priority Queue: 8 Queues ■Jumbo Frame: 12,000 bytes ■Redundancy: RSTP / MSTP / ERPSv2 / LACP ■PTP: IEEE 1588v2 ■QoS: CoS / DSCP / WRR / SPQ ■Industrial Protocols: EtherNet/IP / Modbus TCP / PROFINET ■Power Supply: DC 12–48V Redundant Dual Input ■Power Consumption: 0.79A @ 24VDC ■Dimensions: • 91mm (W) x 118mm (D) x 145mm (H) ■Mounting Method: DIN Rail, Wall Mount (Optional) ■Protection Rating: IP30 ■Environment: -40–75℃
Price information
Open price
Price range
P2
Delivery Time
P4
Applications/Examples of results
Cold outdoor, offshore, railway, ships, oil refinery, coal mine, pharmaceutical company, various factories, weather station.
Line up（2）
| Model number | overview |
|---|---|
| MS-0812X | 8+12 Port Industrial Managed Ethernet Switch with 10G Uplink - 8x 10/100/1000T(x) + 8x 100/1000F(x) SFP Slot + 4x 1/10 Gigabit Ethernet SFP+ Slot |
| MS-0812X-T | 8+12 Port Industrial Managed Ethernet Switch with 10G Uplink - 8x 10/100/1000T(x) + 8x 100/1000F(x) SFP Slot + 4x 1/10 Gigabit Ethernet SFP+ Slot - Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) |
