Micro-hole processing of Matal Matrix Composites for semiconductor equipment applications
Expansion into semiconductor-related products brought by micro-hole processing of Si/SiC composite materials with low thermal expansion and high thermal conductivity.

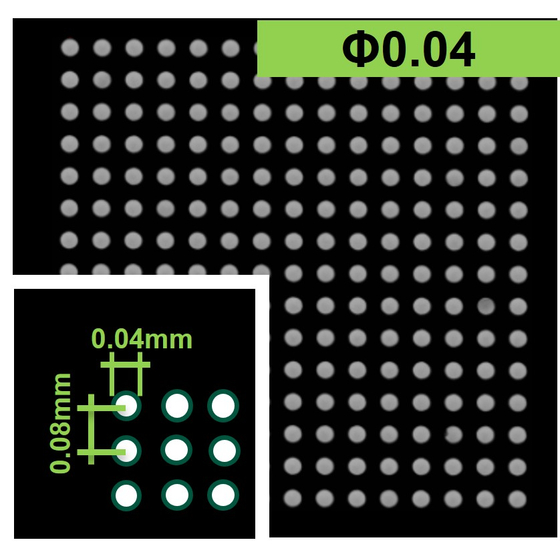

Fine hole processing on MMC (silicon/SiC composite materials) is possible through laser processing and electrical discharge machining. By applying fine hole processing to MMC, which features "low thermal expansion," "low resistance," "wear resistance," and "lightweight/high rigidity," it leads to the next step in improving device performance. <Specifications for Fine Hole Processing> [Hole Diameter] φ0.04 to φ0.25mm [Hole Pitch] 0.08 to 0.2mm Aspect ratio (hole diameter: depth) is approximately 1:20 *For more details, please download the catalog or contact us.
Inquire About This Product
Related Videos
basic information
●Silicon/SiC Composite Materials Materials in which Si is impregnated into porous SiC 【SS501】→Ceramics: 50%, Si: 50% 【SS701】→Ceramics: 70%, Si: 30% 【SS702】→Ceramics: 75%, Si: 25% <Properties> ・Density: 3.0g/cm3 ・Bending Strength: 300–420MPa ・Young's Modulus: 280–350GPa ・Fracture Toughness: 3MPa·m^1/2 ・Coefficient of Thermal Expansion: 3.0x10^-6/K ・Thermal Conductivity: 175–190W/m·K ・Volume Resistivity: >2x10^-2Ω·cm <Composite Material Lineup> ■SA Series Casting (SA301, SA401) Aluminum alloy composite with 30–40 vol% SiC particles ■SA Series Impregnation (SA701) Aluminum infiltrated SiC porous ceramic composite (70vol%) ■SS Series Impregnation (SS501, SS701, SS702) Aluminum infiltrated SiC porous ceramic composite (50–75vol%)
Price range
Delivery Time
Applications/Examples of results
■Shower Plate An important component for uniformly ejecting and diffusing process gases in CVD and etching. ■Probe Card An important testing instrument that electrically connects the tester and the chip. ■Vacuum Chuck A fixture that uniformly holds ultra-thin wafers, films, and glass substrates without deformation or damage.
