A long workstation with a high range of motion, approximately 62 cm horizontally and 61 cm vertically, allowing the monitor and keyboard to be pulled out significantly to the working position.

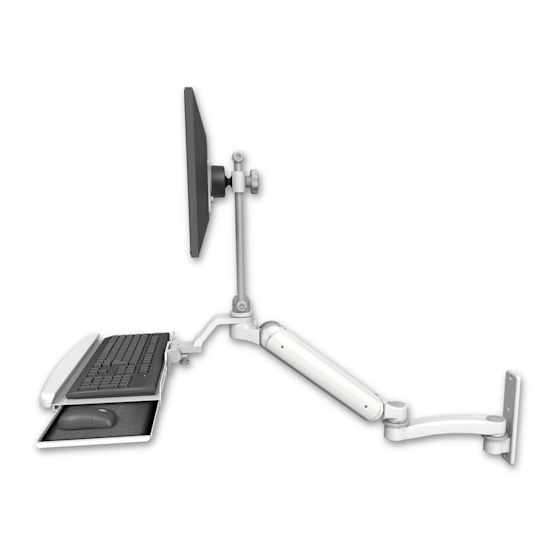

The ASUL182EV7-W3-KUB-A1 is a wall-mounted workstation that allows for the installation of a monitor and keyboard as a single unit, designed for long reach and high mobility. It features a wide range of motion with a horizontal movement range of 24.5 inches (approximately 62.2 cm) and a vertical lift range of 24 inches (approximately 61 cm), along with a 26.7 cm extension arm. The monitor and keyboard can be pulled out significantly to the required working position and returned to the wall side after use. It supports smooth lifting with a gas spring, allowing height adjustments to accommodate both sitting and standing work, depending on the user and the task. The keyboard tray is lift-up style, and it also includes a sliding mouse tray. With the ROM limit (operating angle restriction function), the range of motion of the arm can be set, enabling installation that minimizes interference with walls and surrounding equipment. It is suitable for various environments where a monitor and input devices need to be installed together, not only in medical facilities but also in factories, research and development facilities, inspection equipment, and monitoring and management spaces.
Inquire About This Product
basic information
【Main Specifications】 ■Product Model Number: ASUL182EV7-W3-KUB-A1 ■Mounting Method: Wall-mounted ■Total Load Capacity: Maximum 14.5kg *Recommended for devices up to 10kg ■Horizontal Movement Range (Arm Section): 24.5 inches (62.23cm) ■Vertical Lift Range (Overall Range): 24 inches (60.96cm) ■Monitor Lift Range: Approximately 24cm (at the end of the arm) ■Extension Arm: 26.7cm ■Screen Swivel: 180° ■Screen Tilt: 50° ■Keyboard Tray Size: 48.26 × 19.05cm ■Mouse Tray: Sliding type ■Safety Feature: ROM Limit (Operational Angle Limitation Function) ■Thickness from Wall When Stored: Approximately 24.13cm *For more details on specifications and configuration, please contact us.
Price range
Delivery Time
Applications/Examples of results
**Applications** ■Medical Facilities and Examination Environments Workstations with integrated monitor and keyboard for examination rooms, treatment rooms, testing rooms, and hospital wards. ■Factories and Manufacturing Sites Workstations for monitor surveillance and data input around production equipment and manufacturing lines. ■Inspection and Measurement Equipment Terminals for monitor confirmation, data input, and operation of inspection devices and measurement equipment. ■Research and Development Facilities Workstations for data confirmation and PC operation around experimental and measurement equipment. ■Monitoring and Management Spaces Terminals for equipment monitoring, process management, and operation/monitoring of various systems. ■Space-Saving Work Environments Installation of monitors and keyboards on walls in areas where desks are difficult to set up. ■Adaptation for Sitting and Standing Work Utilizing a vertical lift range of approximately 61 cm to adjust the height of the monitor and keyboard according to the working posture and user.
catalog（2）
Download All Catalogs
Company information
Our company has celebrated its 70th anniversary as a paper trading company. In addition to paper, we also handle packaging materials based on flexible packaging. We have also focused on the sale of LED lighting and have started selling several original products. We offer not only standard LED lighting but also high color rendering LED lighting, LED base lighting for hospitals, and high ceiling LED lighting that can be used in harsh environments such as factories and warehouses. In recent years, we became the first distributor in Japan for ICWUSA, an American monitor arm manufacturer. Known for its robust construction designed for professional use, it stands out in terms of originality compared to other products. We have actual units on display in our showroom on the first floor of our headquarters. We invite you to visit us and experience them firsthand.
