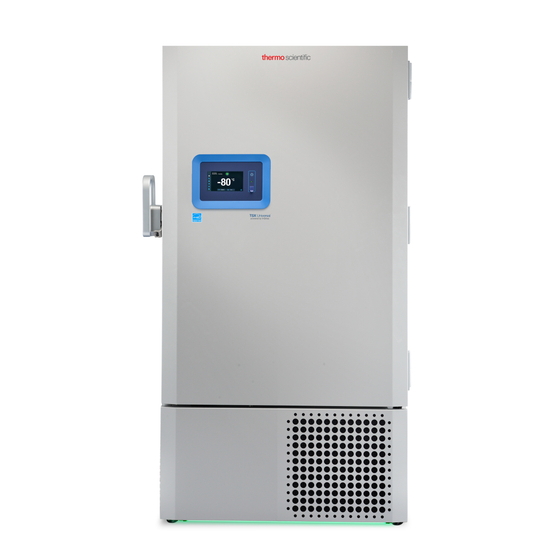

TSX Universal Series Ultra-Low Temperature Freezer
Equipped with next-generation V-drive. A next-generation ultra-low temperature freezer that protects important samples.
The Thermo Scientific TSX Universal series is the next-generation ultra-low temperature freezer that consolidates over 80 years of expertise in cold storage technology. With next-generation V-drive cooling technology, it achieves stable temperature performance and high energy efficiency required in research environments. Additionally, it comes standard with features that support daily operations, such as an intuitive touchscreen and data logging capabilities for temperature, events, and diagnostic information. It adopts a universal power supply design compatible with 100–230 V / 50-60 Hz, and the set temperature range has been expanded to -40°C to -86°C. Available in four capacities ranging from 549 L to 949 L, it meets various sample storage needs in research facilities, universities, pharmaceuticals, and biotechnology.
Inquire About This Product
basic information
**Main Features** - Equipped with next-generation V-drive cooling technology - Temperature setting range: -40°C to -86°C - Universal power supply compatible with 100-230 V, 50/60 Hz - Intuitive touch screen LCD for operation - Onboard data logging for temperature, events, and diagnostic information - Uses natural refrigerants - Insulation structure with VIP (vacuum insulation panels) + water-blown polyurethane foam - Visual and auditory alarms for high and low temperatures - Setting value security with password/PIN - Compatible with CO₂ or LN₂ backup systems (optional) **Product Lineup** TSX40086FA: 549 L / 2-inch box for 400 units TSX50086FA: 682 L / 2-inch box for 500 units TSX60086FA: 816 L / 2-inch box for 600 units TSX70086FA: 949 L / 2-inch box for 700 units **Common Specifications** Temperature range: -40°C to -86°C Power supply: 100-230 V, 50/60 Hz Type: Vertical ultra-low temperature freezer Compressor: V-drive Temperature resolution: 0.1°C Temperature stability: 0.2°C
Price information
Please contact us for pricing and delivery time. We will propose the optimal model based on your application and required capacity.
Delivery Time
Applications/Examples of results
- Long-term storage of research samples at universities and research institutions - Storage of research and development samples at pharmaceutical and biotechnology companies - Ultra-low temperature storage of biological samples such as cells, tissues, serum, and plasma - Storage of research samples such as DNA, RNA, and proteins - Sample management in drug discovery research and life sciences research - Storage of various specimens and research samples at hospitals, testing, and research facilities - Storage of numerous samples at biobanks and large-scale research facilities
