From the design of the device housing to ordering, made easier. CAD dedicated to RecoFrame.
In the design of industrial machinery equipment enclosures, high precision and rigidity, as well as a rapid development cycle, are required. Particularly for enclosures with complex structures, selecting components and verifying assembly procedures can take a significant amount of time and effort. Flexible responses to design changes and accurate ordering of components without excess or shortage are also essential elements for the success of a project. LECOcad is a dedicated 3D design support software developed to address these challenges and streamline the process from equipment enclosure design to component selection, estimation, and ordering. 【Usage Scenarios】 - 3D modeling of equipment enclosures - Design of structures including doors, panels, and accessories - Automatic listing and ordering of components 【Benefits of Implementation】 - Reduction in design time - Decrease in component selection and ordering errors - Acceleration of the development cycle
Inquire About This Product
Related Videos
basic information

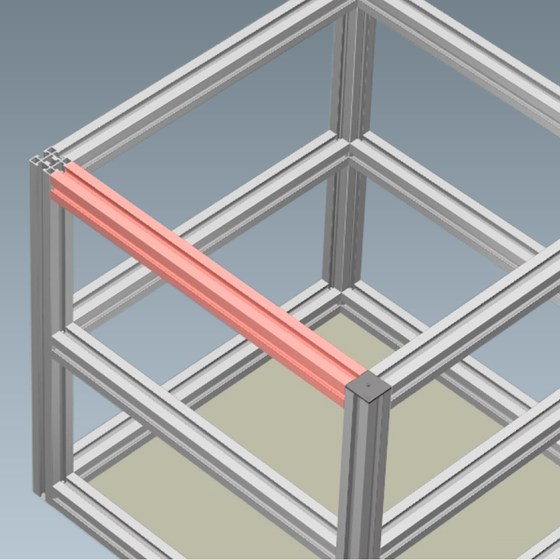

【Features】 - A free 3D design support software developed specifically for RecoFrame - Automatically generates inner joint components necessary for frame placement - Supports drawing structures that combine doors, panels, and various accessories - Automatically creates a parts list from the designed 3D model - Compatible with STEP file output, allowing integration with other CAD systems 【Our Strengths】 RecoFrame is a structural aluminum frame system born from the field of equipment design and manufacturing. With our unique "T-lock connection," it connects firmly within the frame without the need for brackets. This achieves a clean appearance along with excellent assembly, precision, rigidity, and design flexibility. We continue to develop our system to meet customer needs, aiming for a more user-friendly and versatile aluminum frame system.
Price information
You can use it for free.
Delivery Time
Applications/Examples of results
Partition Frame Enclosure Machine cover Booth Fixture Table
catalog（1）
Download All Catalogs
Company information
The most notable feature of the RecoFrame, the T-Lock connection, offers a beautiful appearance and enables speedy and easy assembly. Structural materials related to FA (Factory Automation) are gradually shifting from steel frames to aluminum frames due to their appealing characteristics such as no need for welding, no need for painting, and adaptability to changes. Our main machinery division has also shifted the enclosures from steel to aluminum. However, conventional connection methods using standard brackets have shortcomings in terms of precision, strength, and design flexibility, often spoiling the advantages of aluminum frames. RecoFrame is a structural aluminum frame system developed through such experiences.
