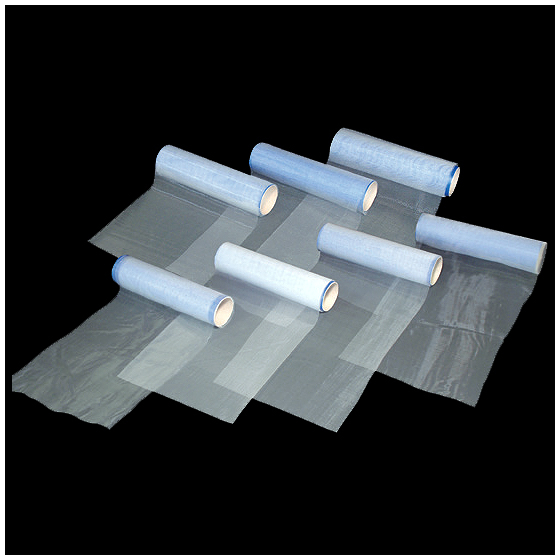

It is a high-performance mesh that excels in heat resistance and can withstand high-temperature sterilization and filtration processes up to 200°C.
● Fluororesin (PFA) mesh has excellent chemical resistance and is used for high-temperature screening, and can be used continuously at 150°C. ● Heat resistance temperature: PFA (200°C)
Inquire About This Product
basic information
■Specifications Item Number Mesh Opening Size Wire Diameter Thickness Size (width × length) M480PFA-52101F 150in 134μm φ35μm 70μm 920mm×1m M480PFA-52102F 100in 144μm φ110μm 231μm M480PFA-52103F 100in 234μm φ80μm 160μm M480PFA-52104F 100in 204μm φ50μm 100μm M480PFA-52105F 60in 313μm φ110μm 210μm M480PFA-52106F 80in 238μm φ80μm 150μm M480PFA-52107F 25in 766μm φ250μm 478μm
Price range
Delivery Time
Applications/Examples of results
● Fluororesin (PFA) mesh has excellent chemical resistance and is used for high-temperature screening, capable of continuous use at 150°C. ● Heat resistance temperature: PFA (200°C)
