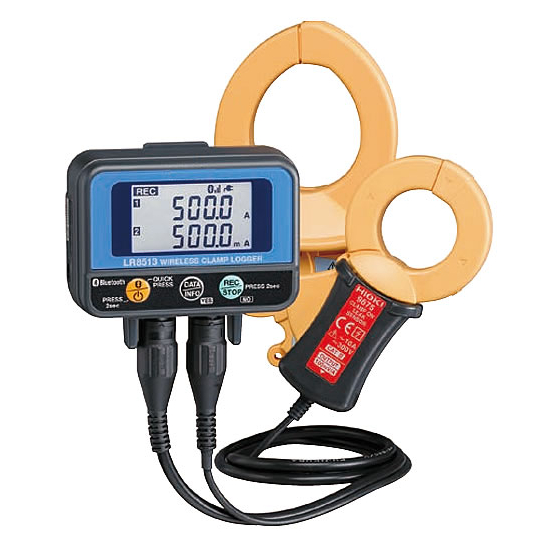

AC/DC load current and AC leakage current can be measured, along with simple power measurement. All models are equipped with 2 channels and have large-capacity memory for long-term recording.
Compact and space-saving, easy to install even in difficult wiring locations.
Inquire About This Product
basic information
■Specifications Input Channels: 2ch Measurement Targets: AC load current, DC load current, AC leakage current (via current sensor) True RMS Calculation: True RMS calculation via software Measurement Range: AC 500.0mA to 5000A (via current sensor) DC 10.00A to 2000A (via current sensor) *Intermittent current and leakage current cannot be measured Measurement Accuracy: ±0.5% rdg, ±5 dgt. (DC, AC 50Hz/60Hz) *When connecting a current sensor, add sensor accuracy Recording Interval: 0.5 seconds to 30 seconds, 1 minute to 60 minutes, 14-step switching Recording Mode: Instantaneous value recording, average value recording, maximum value recording Dimensions: 85(W) × 75(H) × 38(D) mm Weight: 130g Accessories: CD-R (User Manual, Logger Utility, Wireless Logger Collector) ×1, Measurement Guide ×1, Caution for Radio Wave Use ×1, AA Alkaline Batteries (LR6) ×2
Price range
Delivery Time
Applications/Examples of results
■For such applications: PV maintenance, various automotive tests, forklifts, railway systems, equipment maintenance ■Average value recording and maximum value recording mode: Records the average or maximum value of the effective value measured at 0.5-second intervals. The average is useful for grasping demand every 30 minutes, while the maximum is convenient for understanding peak leakage current.
