No special program implementation is required, and SLAM and autonomous driving are possible with the cart robot.

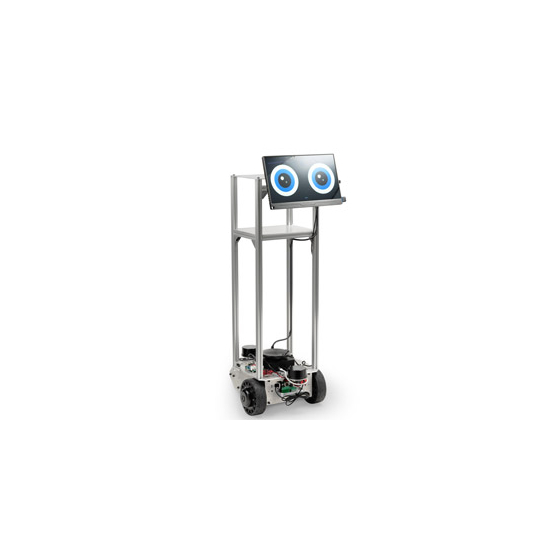

The Megarover Ver.3.0 Autonomous Driving Package is a product package that includes the necessary hardware and software for autonomous driving, built into the already released research and development cart robot "Megarover Ver.3.0." The software for mapping the driving environment and specifying routes using the cart robot is pre-installed, allowing users to utilize the automatic and autonomous driving functions of the cart robot without special knowledge or skills. It also comes standard with a display that clearly shows the operational status and shelves for carrying items, making it possible to trial the introduction and use of automatic transport robots in various settings. 【Features】 ■ Software and hardware for autonomous driving are already installed ■ Map creation and autonomous driving are possible with simple operations ■ Equipped with a display and speaker for easy understanding of operational status ■ Available for sale, as well as rental of the unit
Inquire About This Product
basic information
【Product Specifications】 ■Size: W357×D440×H900 (mm) *Height may vary depending on the fixed angle and position of the display. ■Weight: Approximately 20kg ■Load Capacity: Approximately 30kg (may become unstable depending on the position of the load. Please be cautious.) ■Battery: 24V sealed lead battery 288Wh ■Drive Method: Two-wheel drive, rear caster x1 ■Wheel Diameter: 140mm ■Interface: Wi-Fi ■Accessories: Charger *This product is for indoor use only. Outdoor use is not intended. Additionally, product specifications may change without notice.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
The automation of logistics and transportation using cart-type robots has progressed beyond the level of experimentation and development, moving into a stage where widespread implementation in the field is in high demand. Vstone Co., Ltd. aims to significantly lower the barriers to introducing autonomous driving and automated transportation through the launch of this product, contributing to a future where robotic technology is widely utilized as part of social infrastructure. 【Application Examples】 Research and development robots, transport robots, two-wheel drive robots, autonomous driving robots, conveying robots, AGVs, etc.
Detailed information
-
The Megalover Ver.3.0 autonomous driving package comes pre-installed with the software and hardware necessary to achieve autonomous driving and automated transport on-site. You can start autonomous driving and automated transport without the hassle of building a dedicated development environment or going through complex installation procedures. *This product is intended for indoor use only and is not designed for passenger use. It is only intended for operation on flat and level surfaces.
-
The use of this product begins with creating a map of the site from the operation screen in the browser. The main unit can be controlled using the PC's cursor keys, and the robot itself simultaneously creates the map while estimating its own position. After the map is created, you can create and modify the robot's travel route on the operation screen. For each point set on the screen, you can configure statuses such as passing or stopping, allowing you to design a route tailored to the conditions of the site in advance. While traveling, if the robot detects an obstacle that is not present on the map, it will automatically stop. Subsequently, depending on the situation, it will automatically make decisions such as avoiding the obstacle and continuing on its path.
-
The Megarover Ver.3.0 autonomous driving package includes a display that shows the robot's operational status as "facial expressions," as well as a speaker. It is designed to appropriately output the robot's operational status to its surroundings, allowing for seamless handling during on-site operations.
