We promise you a wonderful "wine life" with our one-rank-up custom-made wine cellar.
○Custom Design to Fit Your Space You can freely design the size to fit your installation space, and everything is made to order, bringing your ideal to life. *Minimum external dimensions: Width 1000mm or more, Depth 650mm or more, Height 2000mm or more (internal height 1450mm)* ○Optimal Temperature and Humidity Control The internal temperature can be set between +5℃ and 15℃. The drain circulation system maintains humidity at 60-70% (*), achieving an optimal storage environment. The ceiling, floor, and walls are made with high-insulation polyurethane panels, making it less susceptible to external temperature changes, allowing for optimal temperature management. *There is no humidification function, and humidity will depend on the conditions. The values are based on an optimal installation environment and are not guaranteed.* ○Excellent Running Costs By consolidating multiple units into one large-capacity wine cellar, it is possible to reduce running costs. The design excels in cooling efficiency and insulation performance, consuming less electricity than standard ready-made wine cellars. ○Comprehensive Aftercare With a long-term warranty of 5 years (*), you can use it with peace of mind. In the event of a malfunction, a dedicated service representative will respond promptly. *Depending on the nature of the damage or malfunction, there may be charges.*
Inquire About This Product
basic information
【Standard Type】 Dimensions: External dimensions (Width) 1884mm × (Depth) 1284mm × (Height) 2350mm Rack: Industrial rack (Black painted) WR-001, WR-002 Storage capacity: Over 1000 bottles (Rack storage capacity 378 bottles / Diagonal placement: 81 bottles × 2 units / Flat placement: 108 bottles × 2 units) Flooring: Finished with flooring Set temperature: +5 to 15°C Internal humidity: As it occurs Total weight: Approximately 1000kg (Main unit: Approximately 500kg; Wine: Approximately 500kg when storing 378 bottles / Calculated at 1.3kg per bottle) Cooling method: Compressor type Lighting: LED lighting Power supply: Single-phase 100V (Power supply for cooling unit and lighting) Custom-made options are available. Please contact us for details.
Price range
Delivery Time
※We appreciate your patience as we take the time for your custom order.
Applications/Examples of results
In addition to the hotel wine shop, winery, and hot spring inn, we have a track record of installations in residential homes.
Detailed information
-

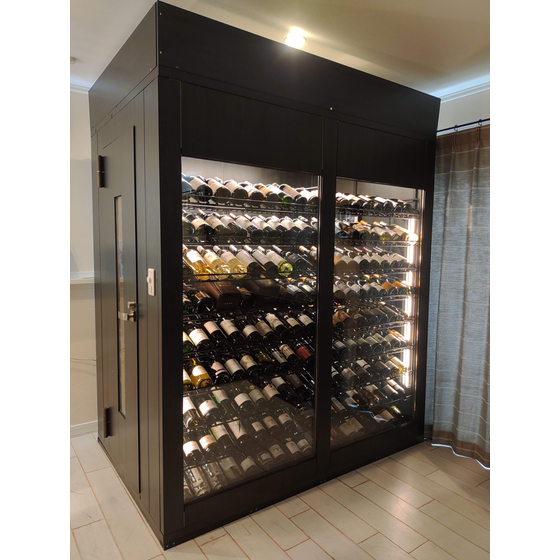

It's a large-capacity wine cellar, so when you line up the wines, the sight is breathtaking.
-
This is the standard size for a diagonal wine rack. Width: 867mm × Depth: 265mm × Height: 1614mm Storage capacity: 81 bottles (9 bottles × 9 rows)
-
This is the standard size for a flat wine rack. Width 867mm × Depth 265mm × Height 1614mm Storage capacity: 108 bottles (9 bottles × 12 rows)
-
The floor features stylish flooring. It enhances the atmosphere of the wine cellar.
Company information
The applications of panels range from commercial refrigerators to cutting-edge precision equipment manufacturing and clean rooms that are essential in medical research. They help keep factory workspaces clean, improve insulation efficiency, and contribute to energy savings. By meeting clean environment standards and managing temperature, it becomes possible to enhance product accuracy. "Iwatani's" advanced panel technology responds to these diverse needs and plays an active role in various settings.
