Over 30,000 delivery achievements worldwide! Precisely detect leakage points and prevent leakage accidents before they occur!

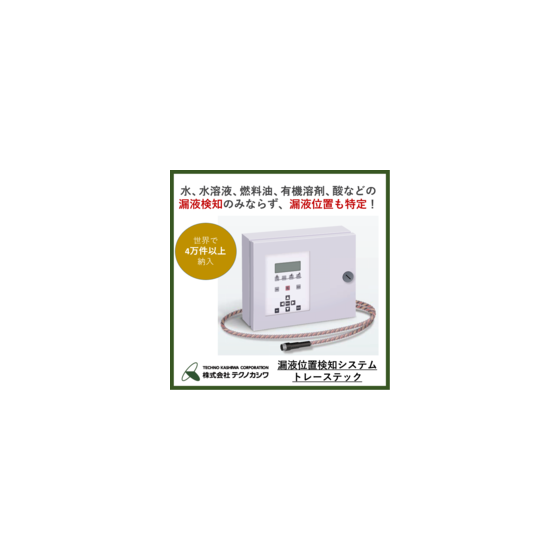

General point-type leak sensors detect liquid around the area where the sensor is installed. In contrast, TraceTech can monitor a wide range by continuously laying sensor cables along pipes, floors, underground pits, and around equipment. Furthermore, a significant feature is that it can not only detect liquid but also identify the distance from the starting point of the sensor cable to the leak location. Difference between leak detection and leak location detection Leak detection refers to the ability to detect the presence of water, oil, chemicals, etc., leaking within the monitored area. By understanding whether there is a leak, inspections and responses can be initiated before equipment shutdowns or secondary damage occur. Leak location detection, on the other hand, not only indicates the presence of a leak but also displays the specific location on the sensor cable where the liquid was detected as distance information. With TraceTech, the displayed distance can be cross-referenced with the sensor layout map to confirm the leak location. In the case of underground buried pipes, it is possible to narrow down the leak location without excavating the entire ground. Additionally, for overhead piping, the leak location can be identified without visually inspecting the entire route of the piping rack.
Inquire About This Product
basic information
【Features】 ○ High Reliability → Over 30,000 installations worldwide → Application of highly reliable conductive polymer technology from Raichem ○ Easy Installation and Maintenance → The detector is easy and straightforward to operate → Adjustments can be easily made on-site ○ High Precision Leak Location Detection → The entire sensor cable functions as a sensor ○ Flexible System Scale → Can be freely expanded or modified from 1m to 1500m on a single circuit ○ Interface with Host System → Relay → 4-20mA Analog Current Loop For more details, please contact us.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
【Examples of Use】 ○ Semiconductor and LCD factories ○ On-site power generation facilities for buildings and factories ○ DC (Internet Data Centers), computer rooms, and computing centers ○ Buried piping ○ Piping and tanks in chemical plants, pharmaceutical factories, and other plants ○ Art museums, museums, and libraries ○ Banks, hospitals, and telecommunication offices ○ Soil contamination prevention measures Others *For more details, please contact us.
catalog（1）
Download All Catalogs
Company information
Our company is an engineering firm specializing in electric heaters. We started by handling Raychem self-regulating heaters for preventing water pipe freezing. Since then, we have accumulated technology and have undertaken numerous projects from design to construction for fields requiring strict temperature control, such as petrochemicals, food factories, and the power generation industry, including process insulation for piping and tanks. In addition to self-regulating electric heaters with a maximum holding temperature of 150°C, we also handle higher temperature power-limited heaters, MI heaters, and sheath heaters. Currently, the mainstream for process insulation in manufacturing sites is steam or hot water, which consumes large amounts of fossil fuels. However, due to environmental issues and unstable energy costs, there is an increasing number of manufacturing professionals focusing on electric heating.
