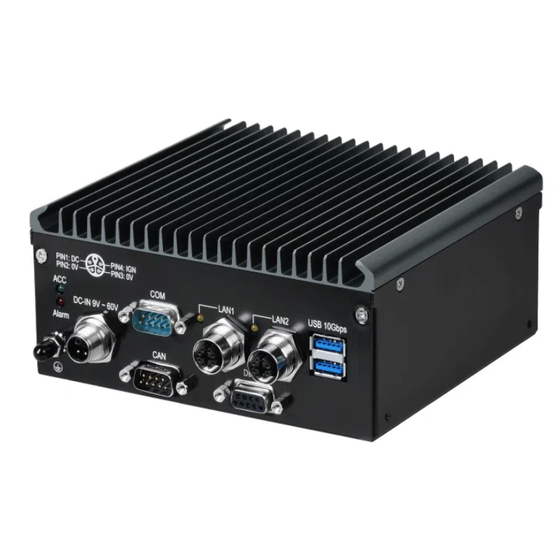

SINTRONES, equipped with NVIDIA Jetson Orin NX / Nano, fanless operation, extended temperature support.
【SINTRONES IBOX-600 Features】 ■ Width 244 × Height 69 × Depth 135 mm ■ Equipped with NVIDIA Jetson Orin NX / Nano, fanless operation ■ Supports up to 1024 CUDA cores ■ 16GB LPDDR5 (Orin NX CPU module) / 8GB LPDDR5 (Orin Nano CPU module) ■ Supports 8 inputs for TVI/AHD cameras, 8 channels of camera input via BNC connectors ■ 1 display output (HDMI) ■ Expansion slots: M.2 Key M (NVMe SSD) ×1, M.2 Key B (WWAN) ×1, M.2 Key E (Wi-Fi/BT) ×1, Mini PCIe (GNSS) ×1 ■ Equipped with 2.5GbE ×1 + GbE ×1 Ethernet ports ■ Supports CAN FD, DI ×4, DO ×4, RS-232/422/485 ■ Extended temperature range -25 to 65℃ (with airflow, 0.6m/s) ■ Wide DC input 9-60V, controlled by ignition key ■ Vehicle EMark certification ■ Complies with MIL-STD-810H and IEC 60068-2-64 for vibration and shock resistance
Inquire About This Product
basic information
Specifications ■Module: NVIDIA Jetson Orin /NX 16GB – (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) /Nano 8GB – (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5) ■Storage: 1 x M.2 2280 Key M for NVMe SSD ■I/O Connectors: 2xRJ-45 (1 x 2.5GbE & 1 x GbE), 2 USB (2 USB3.2), 1 COM, 4x DI, 4x DO, 1x CAN bus, 1x HDMI, 8 x TVI/AHD (BNC) ■Mounting Method: Wall mounting ■Power Supply: DC input 9–60V, controlled by ignition key ■Certification: CE, FCC Part-15 Class A, E-mark, EN50155, EN45545 (R25) ■OS: NVIDIA JetPack 6.2 or later (including Jetson Linux and NVIDIA development tools)
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
Vehicle computing systems for in-vehicle machines, factory, building automation/monitoring systems.
