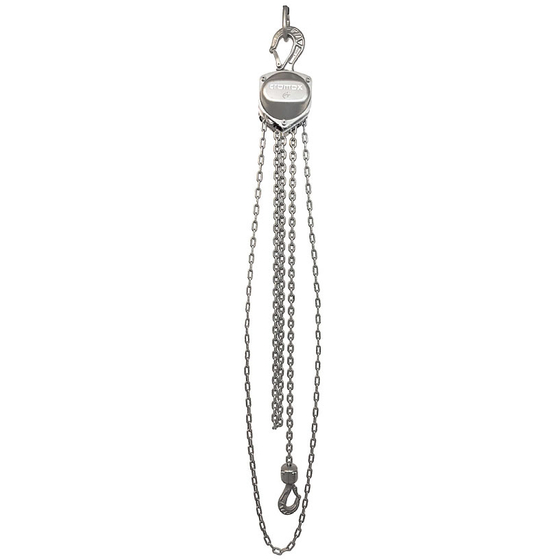

Cleanroom-compatible stainless steel chain block (for food, seafood, and pharmaceuticals)
●Usage weight: 0.63 (0.5)t～3.0 (2.4)t Safety factor: 4 times (the number in parentheses is 5 times) ●Excellent corrosion resistance due to carefully selected materials and manufacturing ●Sealed brake and gear unit allow for use in clean rooms ●Swivel upper hook, pole bearing swivel lower hook
Inquire About This Product
basic information
■Specifications Item NumberM1621SCB-630KGM1621SCB-1000KGM1621SCB-2000KGM1621SCB-3000KG Working Load (t)0.63 (0.50)1.00 (0.80)2.00 (1.60)3.00 (2.40) Number of Hooks1123 a (min.)375375560560 b150150175275 c150150150150 d6060150150 Test Load (kg)9451,5003,0004,500 Standard Lift Height (m) *Changeable3333 Load ChainCHK-6.3×19.1CHK-7.1×21.2 Hand ChainNHC-5×25 Self Weight (kg)6.16.37.712.0
Price range
Delivery Time
Applications/Examples of results
■Standard Specifications - Chain Length: 3m M1621SCB-630KG: Chain: CHK 6.3×Inner Pitch 19.1mm - M1621SCB-1000KG/M1621SCB-2000KG/M1621SCB-3000KG Chain: φ7.1×Inner Pitch 21.2mm - Hand Chain: 1.5m NHC φ5×Inner Pitch 25mm - Customizable upon request
