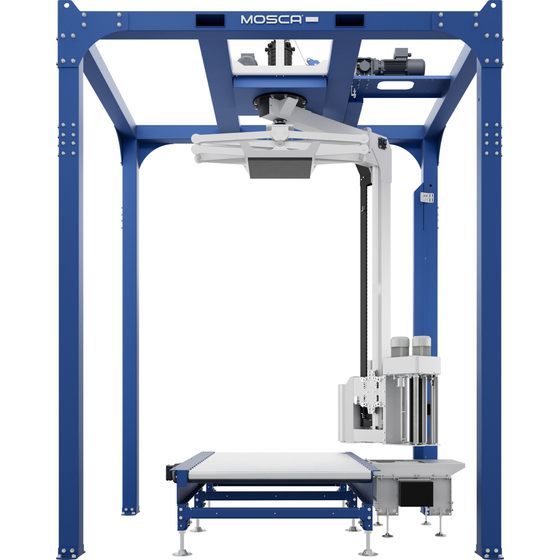

Latest model! A middle-class arm-rotating stretch wrapping machine that replaces turntable-style wrappers, with a maximum capacity of 60 pallets per hour.
The Luna A3 adopts a rotary arm system that rotates to envelop the pallet, preventing load collapse caused by centrifugal force, which is common in turntable systems, and achieving stable stretch wrapping even for lightweight or tall items. Additionally, with a standard pre-stretch function of 300% (up to 400% as an option), it significantly reduces film usage while ensuring uniform and stable packaging by automatically controlling the film tension during wrapping. Not only is the Luna A3 lighter than the Luna A1, but it is also a state-of-the-art mid-class stretch wrapping machine capable of packaging up to 60 pallets per hour. Furthermore, its space-saving design eliminates the need for rollers, chains, or belt conveyors, making installation easy and allowing for flexible adaptation to existing lines or changes in factory layout. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
Related Videos
basic information
Technical Data (Excerpt) Processing Capacity: Maximum 60 pallets / hour Cargo Dimensions Maximum Pallet Size: 1,250×1,250mm Maximum Diagonal Length: 1,770mm Maximum Height: 2,000mm [When frame extended: 2,500mm] Power Supply Voltage: 400V / 50Hz, 3P+N+PE Power Consumption: 2.0kW Conveyor Technology and Conveying Height: Roller, Chain, Belt, or No Conveyor 100–1,000mm Weight: 850kg (without options) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Food and Beverage Industry Logistics and Warehousing Industry Corrugated Cardboard and Paper Industry Printing and Publishing Industry Building Materials and Wood Industry Containers and Packaging Materials Daily Necessities and Consumer Goods Industry Pharmaceuticals and Cosmetics Industry Machinery Parts and Manufacturing Industry
catalog（1）
Download All Catalogs
Company information
Founded in Germany in 1966 and employing approximately 1,250 people, we are a manufacturer of digitally optimized, best-in-class packaging machines, pallet packaging machines, stretch wrapping machines, and PP/PET bands made from recycled materials. Our patented "zero emissions" SoniXs ultrasonic welding technology does not produce any "odors," "harmful substances," "welding residues," or "heating time," unlike conventional thermal welding equipment, significantly reducing total ownership costs and environmental impact. We were awarded as the most sustainable company in the field of mechanical engineering in Germany in both 2021 and 2022. In 2023 and 2024, we were recognized as the "Company of the Year" for two consecutive years as the best machine manufacturer in Germany, achieving outstanding results in all four categories: "Price/Performance," "Customer Trust," "Service Quality," and "Sustainability." (Awarding body) Focus Money & Deutschland Test (Research institution) IMWF Institute for Management and Economic Research.
