Stable molding at 20 to 25 pieces per minute. Compact design for reducing labor in gyoza production at stores and central kitchens.

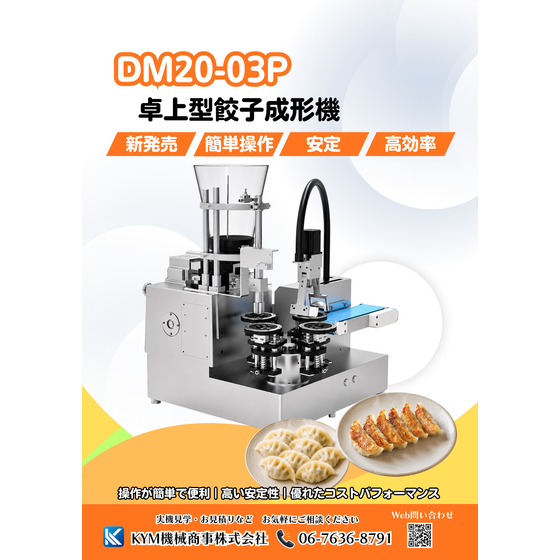

The DM20-03P is a compact tabletop dumpling forming machine that automates the dumpling shaping process. It supports the classic five-fold flower-shaped dumplings, achieving a plump and uniform appearance. It can shape dumplings suitable for various cooking methods such as frying, steaming, and boiling. The production speed is 20 to 25 pieces per minute, and the filling amount can be adjusted within the range of 4 to 20 grams. Equipped with a standard photoelectric sensor, it effectively prevents empty wrappers without filling. Additionally, it employs a PPU robotic arm that integrates the actions of wrapping, gripping, and cutting, which trims excess dough from the edges of the dumplings. It can be activated with a single touch and is designed to be user-friendly, even for those with little experience. Its modular structure allows for easy disassembly and cleaning without the need for tools, taking into consideration daily cleaning and maintenance.
Inquire About This Product
basic information
Model: DM20-03P Power Supply: Single-phase 220V, 50Hz Power Consumption: 1,200W Air Source: 0.6MPa, 10L/min *Air source required separately Hopper Capacity: 8L (approximately 5kg) Number of Stations: 4 molds Dough Size: φ85mm / φ90mm Filling Amount: 4–20g Product Weight Range: 22–23g Production Speed: 20–25 pieces/min *Varies depending on dough input speed Main Unit Weight: 110kg Main Unit Dimensions: Length 694 × Width 754 × Height 803mm
Price information
Price information: Consultation required. *Varies depending on specifications and options. Please contact us for details.
Delivery Time
※Delivery time: For standard machines, approximately 3 months after order placement. *Delivery times may vary depending on specifications and production conditions.
Applications/Examples of results
Dumpling specialty store Restaurant Food factory Central kitchen Prepared food manufacturing site Production of frozen and chilled dumplings
