Speed binding in about 1 second. A flexible rope binding machine suitable for soft products and products sensitive to pressure.

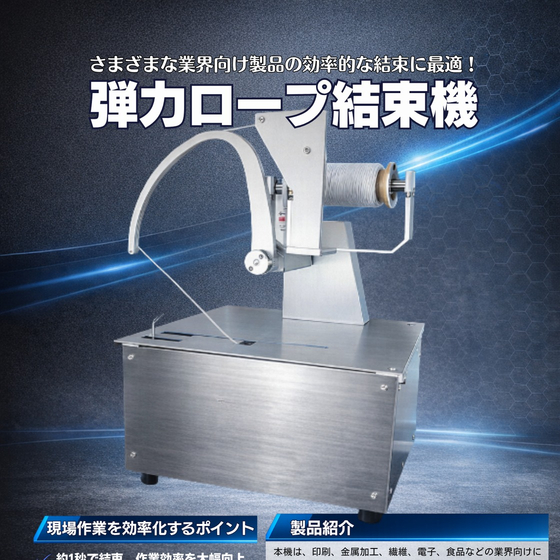

The ER-16 is an automatic bundling machine that uses elastic ropes with a diameter of 1 to 1.5 mm to quickly bundle various products. It accommodates a wide range of items such as documents, stacks of paper, flyers, medicine boxes, shoe boxes, electronic circuit boards, cards, and powder bags, and can be used in various industries including printing, metal processing, textiles, electronics, and food. The bundling speed is approximately 1 second per cycle. It allows for adjustable tightening force, enabling flexible adaptation to the size and shape of the items. It is particularly suitable for bundling soft products or items that should not be subjected to strong pressure. It also supports foot-operated control, reducing the burden on the operator. With a compact design, it can be installed in space-saving configurations and is compatible with automation lines. ◎ Main Features - Bundling speed: approximately 1 second per cycle - Compatible with elastic ropes of 1 to 1.5 mm in diameter - Adjustable tightening force - Suitable for bundling soft products and items sensitive to pressure - Supports foot-operated control - Easy operation with stable bundling quality - Compact design for space-saving - High-strength frame - Compatible with automation lines Short video: https://youtube.com/shorts/miwZiAdwD1U?si=226OZMzRPHl_y-_T
Inquire About This Product
basic information
Model: ER-16 Product Name: Elastic Rope Automatic Bundling Machine Drive Method: Electric Table Height: 280mm Bundling Method: Slip Knot Type (Rope Bundling) Compatible Product Height: 145mm or less Bundling Material: Elastic Rope Compatible Rope Diameter: 1 to 1.5mm Power Supply: AC220V 50/60Hz Power: DC24V 120W Operation Method: Contact Bundling + Foot Pedal Bundling Integrated Bundling Speed: 1 second per cycle Machine Weight: 35kg External Dimensions: L445 × W385 × H680mm Packing Weight: 43kg Applicable Industries: Printing, Metal, Textiles, Wood Products, Electronics, Food, etc.
Price information
Price: To be discussed *Varies depending on specifications, quantity, and options.
Delivery Time
※Standard machine: Approximately 3 months after order placement. *Delivery times may vary depending on stock availability.
Applications/Examples of results
Binding of documents, paper bundles, and flyers Binding of medicine boxes, shoe boxes, and various small boxes Binding of electronic circuit boards and cards Binding of bags such as powder bags Various binding operations in the printing, metal, textile, wooden products, electronics, and food industries
