IEI, for industrial embedded systems, equipped with Ryzen 7 8700G/5 8600G, compatible with extended temperature range.

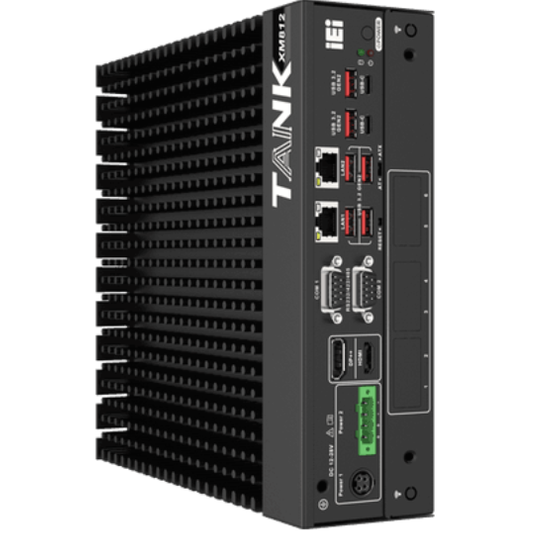

【IEI TANK-XM812 Features】 ■ Dimensions: 255mm (W) × 68.7mm (H) × 230.6mm (D), 4.04 liters ■ Fanless AMD Ryzen 7 8700G 4.2GHz / Ryzen 5 8600G 4.3GHz CPU ■ 2 x 2.5GbE, 6 x USB3.2 ■ 1 x DP++, 1 x HDMI, 2 x USB Type-C ■ Expansion slots (optional) 2 slots: 1 PCIe[x16] + 1 PCIe[x4] / 2 PCIe[x8] 4 slots: 1 PCIe[x16] + 1 PCIe[x4] + 1 PCIe[x1] 4 slots: 1 PCIe[x16] + 1 PCIe[x4] + 2 PCI ■ Dual wide DC input 12V to 28V ■ Extended operating temperature -20 to 60℃ (with SSD) ■ Robust, vibration-resistant
Inquire About This Product
basic information
Specifications ■CPU / Chipset: AMD Ryzen 7 8700G 4.2GHz / Ryzen 5 8600G 4.3GHz / AMD B650 ■Memory: DDR5-5200 SODIMM x 2 (8GB installed, maximum 96GB) ■Storage: 2.5" SATA HDD/SSD bay (RAID 0/1) x 2 ■Expansion Slots: 2 slot model: 1 PCIe[x16] + 1 PCIe[x4] 4 slot model: 1 PCIe[x16] + 1 PCIe[x4] + 1 PCIe[x1] 4 slot model: 1 PCIe[x16] + 1 PCIe[x4] + 2 PCI M.2 2280 M-key (PCIe Gen4[x4]) x 1 M.2 2230 A-key (USB+PCIe Gen3[x1]) x 1 ■Operating Temperature: -20 to 60℃ (with airflow when using SSD) ■Shock Resistance: Half sine wave vibration 5G; 11ms; 100 axes ■Vibration Resistance: MIL-STD-810H 514.8 C-1 (SSD) ■Weight: 3.18 kg ■Certification: CE, FCC
Price range
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| TANK-XM812-87AC-R10 | AMD Ryzen 7 8700G 4.2GHz, 8GB DDR5 |
| TANK-XM812-85AC-R10 | AMD Ryzen 5 8600G 4.3GHz, 8GB DDR5 |
| Option | 180W AC adapter, expansion fan, expansion board (8 2.5GbE PoE, 2 M.2 B-key & 1 M.2 A-key & 1 Mini PCIe), expansion backplane (2/4 expansion slots), 150W/380W power module for expansion slots, chassis for expansion backplane. |
catalog（1）
Download All Catalogs
