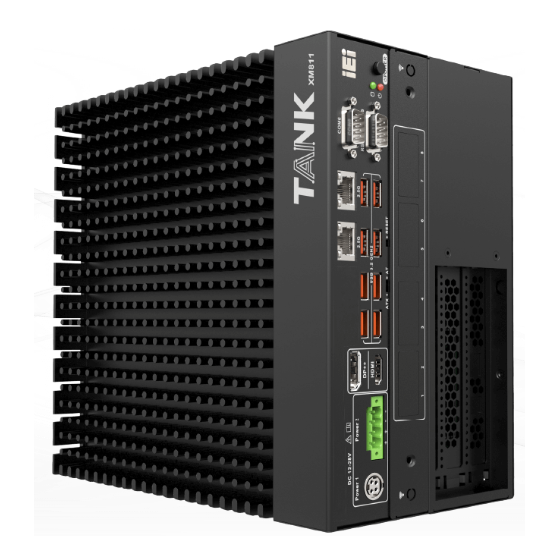

IEI, equipped with Raptor Lake 14th/13th generation Core i series for systems compatible with extended temperature.
【IEI TANK-XM811AI-RPL Features】 ■ Width 255.4 × Height 137.9 × Depth 230.6 mm, 8.12 liters ■ Raptor Lake 14th/13th generation Core i9/i7 CPU ■ 2 2.5GbE, 8 USB3.2 ■ 1 DP++, 1 HDMI ■ Expansion slots: 2 slots, 2 PCIe [x8] ■ Dual wide DC input 12V to 28V ■ Extended operating temperature -20 to 60℃ (with SSD) ■ Robust, vibration-resistant
Inquire About This Product
basic information
Specifications ■CPU: Core i9-14900T 1.1GHz / i9-13900TE 1.0GHz / i7-14700T 1.3GHz / i7-13700TE 1.1GHz ■Chipset: R680E ■Memory: DDR4-3200 SODIMM x 2 (16GB x2 installed, maximum 64GB) ■Storage: 2.5" SATA HDD/SSD bay x 1 (512GB (14th generation CPU)/256GB (13th generation CPU) installed) ■Expansion Slots: 2 PCIe[x8] (total power supply up to 75W, FHHL card compatible) M.2 2280 M-key (PCle Gen4[x4]) x 2 M.2 2230 A-key (USB+PCIe Gen3[x1], vPRO compatible) ■Input Power: 12 ～ 28VDC input (3pin terminal block), Remote PWR (2pin terminal block) ■Weight: 4.6kg ■Operating Temperature: -20 ～ 60℃ (with airflow when using expanded temperature SSD) ■Certification: CE, FCC, MIL-STD-810G 514.6 C-1 (SSD)
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（4）
| Model number | overview |
|---|---|
| TANK-XM810-i3AC-R11 | Core i9-13900TE 1.0GHz, 2 16GB DDR4, 256GB SSD, 180W AC adapter |
| TANK-XM810-i3BC-R11 | Core i7-13700TE 1.1GHz, 2 16GB DDR4, 256GB SSD, 180W AC adapter |
| TANK-XM810-i5AC-R11 | Core i9-14900T 1.1GHz, 2 16GB DDR4, 512GB SSD, 180W AC adapter |
| TANK-XM810-i5BC-R11 | Core i7-14700T 1.3GHz, 2 16GB DDR4, 512GB SSD, 180W AC adapter |
