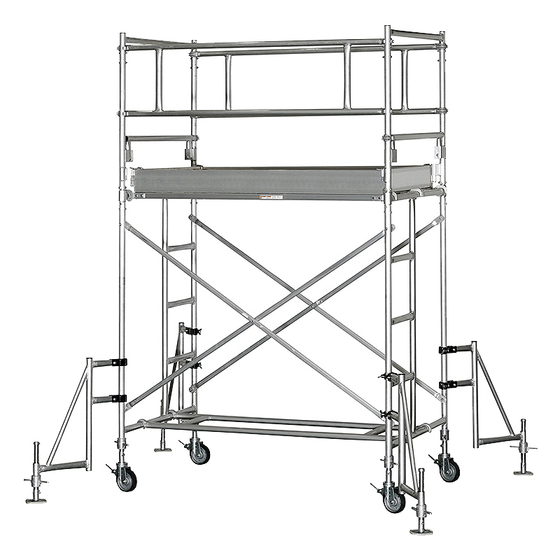

Narrow design suitable for limited spaces. Aluminum rolling tower with outriggers for stability.
The M196RA-1NHDP series is a mobile scaffold that adopts a narrow design with a working platform size of 1.65×0.91m. Equipped with outriggers, the floor height can be adjusted from 1.97 to 5.30m, allowing selection from 1-step, 2-step, or 3-step sets according to the working height. In addition to the standard types M196RA-1NHDP to M196RA-3NHDP, there is also a lineup of M196RA-1NUHDP to M196RA-3NUHDP with internal stairs for ascending and descending from inside the tower. The maximum allowable load is 200kg, and consideration has been given to ease of access to the working platform.
Inquire About This Product
basic information
■Specifications Model Number With Outrigger M196RA-1NHDP M196RA-2NHDP M196RA-3NHDP Internal Staircase & With Outrigger M196RA-1NUHDP M196RA-2NUHDP M196RA-3NUHDP Type 1-Step Set 2-Step Set 3-Step Set Working Platform Height 1.97~2.20m 3.52~3.75m 5.07~5.30m Total Height 3.04~3.27m 4.59~4.82m 6.14~6.37m Working Platform Dimensions 1.65×0.91m 1.65×0.91m 1.65×0.91m Frame Dimensions (Center of Support) 1.83×1.07m 1.83×1.07m 1.83×1.07m Weight With Outrigger 98kg 123kg 144kg Internal Staircase & With Outrigger 111kg 160kg 209kg Components
Price range
Delivery Time
Applications/Examples of results
●Narrow design to accommodate limited workspaces The working floor dimensions are 1.65×0.91m, and the frame dimensions (center of the supports) are 1.83×1.07m. This narrow specification, with reduced depth compared to the standard width type, is suitable for high-altitude work in spaces with limited room. ●Three types available to match working height A lineup of 1-step, 2-step, and 3-step sets is available. The floor heights are 1-step set at 1.97–2.20m, 2-step set at 3.52–3.75m, and 3-step set at 5.07–5.30m, allowing selection based on application and work location. ●Stability considered with outriggers Four jack-equipped outriggers are included as components. Despite being a narrow type, the design takes stability during work into account. Additionally, the manufacturer requires a base set when using the outriggers. ●Interior staircase specification also available Models M196RA-1NUHDP to 3NUHDP are equipped with an interior staircase. This design allows for ascent and descent to the working floor from inside the tower, and the 2-step and 3-step types also include handrails for the interior staircase. ●Smooth access to the working floor The middle rail of the handrail frame is designed to fold down, facilitating smooth access to the working floor.
