Electric lateral movement of pallet racks. Consolidate aisles and make effective use of warehouse storage space.

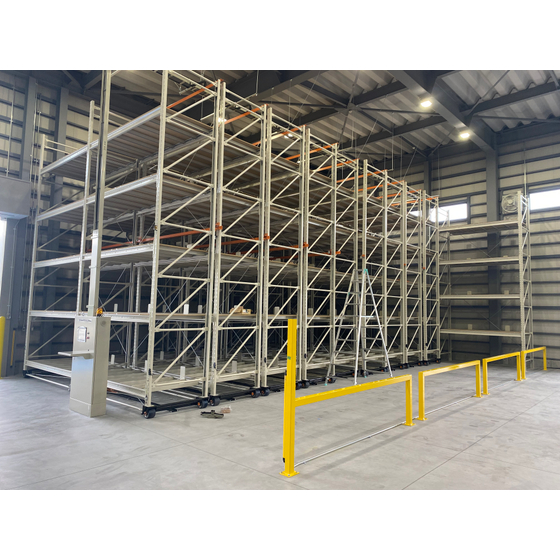

This is an electric moving rack that allows for the horizontal movement of pallet racks, creating aisles only where needed. Unlike fixed racks, there is no need to create aisles for each row, allowing for the efficient use of limited warehouse space by consolidating aisles into one. It contributes to increased storage capacity and improved work efficiency. 【Features】 - Smooth electric horizontal movement of pallet racks - Aisles are created only where necessary, achieving high-density storage - Racks can be moved with a button operation, streamlining inbound and outbound operations - Compatible with pallet storage using forklifts - Efficiently balances storage space and work aisles - Rail-less design allows for installation without extensive floor rail construction - Centralized management of available space and inventory status through an inbound and outbound management system - Operable from a tablet Ideal for addressing storage shortages in logistics warehouses and factories, reducing aisle space, and re-evaluating storage layouts. If you are struggling to secure new storage locations, we will check the installation site, stored items, and operational methods to propose specifications tailored to your needs.
Inquire About This Product
basic information
【Product Overview】 Product Type: Electric Mobile Rack Storage Method: Pallet Rack Movement Method: Electric Movement Direction: Lateral Movement Application: High-Density Storage of Pallets and Heavy Items Main Installation Locations: Warehouses, Logistics Centers, Factories, etc. Rack Connection: 2 or 3 connections (selectable) Rack Levels, Width, Height: Various options available Load Capacity per Level: 500kg, 1,000kg, 1,500kg, 2,000kg (selectable) *Load capacity varies by width. *Total load capacity per row is below 20t. Control Panel Dimensions: H1,600 × W800 × D250mm Travel Speed: Max. 0.6km/h (10m/min), Continuous 0.3km/h (5m/min) Power Supply Voltage: 200V 50/60Hz Anti-Tipping Measures: Anti-tipping poles, anti-tipping units installed on racks Safety Measures: Immediate stop upon entry detected by area sensors; operation key to switch driving on/off Warning Lights and Alarms: Activated by various operations *Additional options available upon request Operation Method: Centralized operation via touch panel *Remote operation via tablet available (optional) System: Storage information registration; automatic movement of electric mobile rack during inbound and outbound operations.
Price information
It varies depending on the number of units, rack size, stored items, installation environment, specifications, etc. We will provide a quote after confirming the site conditions.
Delivery Time
※It varies depending on specifications, quantity, and construction conditions. Please contact us for more details.
Applications/Examples of results
【Main Uses】 - Pallet storage in logistics warehouses - Storage of parts, products, and raw materials within factories - High-density storage of heavy items - Measures to address insufficient storage capacity in warehouses - Effective use of space when wanting to avoid warehouse expansion or relocation - Reduction of aisle space between pallet racks - Storage facilities involving inbound and outbound operations with forklifts
Detailed information
-
Maximize storage efficiency by effectively utilizing limited floor space. Minimize aisle space between shelves to make the most of the limited floor area. With a maximum height of 6m, a maximum width of 3m, and unlimited rows, designs can be tailored to fit the installation space.
-
■It is possible to load and unload without turning during straight movement. The forklift can enter and exit by moving forward and backward only. This reduces the required turning space, leading to a decrease in accident risk and space-saving benefits.
-
■No large-scale floor construction required due to rail-less design Since no rails are installed on the floor, large-scale floor construction is unnecessary. This makes it easier to reduce construction time and costs, and it is a design that can be easily implemented in rental warehouses and factories.
-
■Urethane wheels that enable long-term stable operation Adopting urethane wheels with excellent load-bearing capacity, wear resistance, and quietness. They support stable movement even with racks loaded with heavy items.
-
Up to 2000 kg can be loaded per level. You can choose the load capacity from 500 kg, 1000 kg, 1500 kg, or 2000 kg per level. It also accommodates pallet storage, large materials, and heavy components.
-
■Visualizing storage locations in the inventory management system Inventory information, storage locations, and available space can be checked on the screen. It streamlines the search and confirmation tasks during inbound and outbound operations as well as inventory counts.
