Electric conversion of existing cart operations. Easily transport heavy items up to 300 kg.

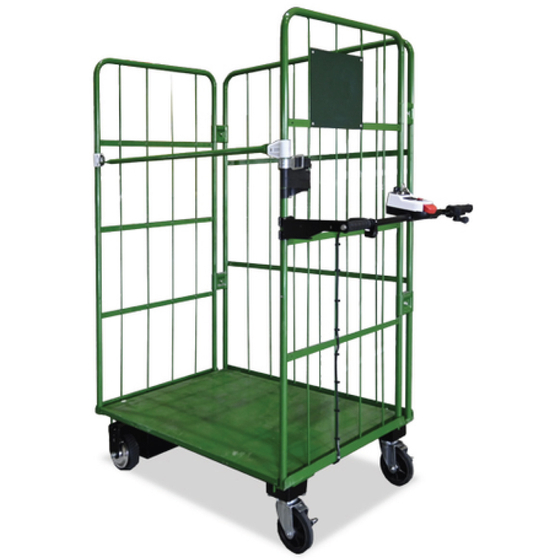

The "TFS Sensor Equipped Cart" is an electric cart equipped with a TFS sensor that detects the movement of a rope and follows its direction. It allows for intuitive transportation without the need for switch operation and is designed to easily integrate into existing loading and unloading workflows. It has a maximum load capacity of 300 kg, a top speed of 4.5 km/h, and a maximum travel distance of 10 km. In addition to standard sizes, it can also accommodate custom specifications for size, load capacity, and shape. 【Features】 ■ TFS sensor that follows the direction of the rope ■ Maximum load capacity of 300 kg ■ Top speed of 4.5 km/h ■ Maximum travel distance of 10 km ■ Climbing ability of 10° ■ TFS + lever push type ■ Compatible with standard sizes and custom specifications It is ideal for transporting heavy items, repetitive transportation, and labor-saving in multi-person operations in logistics warehouses and factories. We can propose specifications tailored to the transported items and the site environment.
Inquire About This Product
basic information
【Product Specifications】 Maximum Load Capacity: 300kg Maximum Speed: 4.5km/h Maximum Travel Distance: 10km Climbing Ability: 10° Loading Size: 1100×800mm (R1) / 900×600mm (R2) Shape: Cart type (custom specifications available) Operation Method: TFS + lever push type Motor: 24V BLDC 200W ×2 Battery: Lithium-ion 36V 10Ah Charger: 36V 1.7A This is a made-to-order sales format that can accommodate not only standard sizes but also custom specifications for size, load capacity, and shape.
Price information
Prices vary depending on specifications, size, safety devices, load capacity, battery configuration, and usage environment. Please contact us for more details.
Delivery Time
※It varies depending on the model, specifications, and stock status. We will provide information along with the estimate.
Applications/Examples of results
【Main Uses】 - Transporting cage trolleys within logistics warehouses - Transporting parts, products, and materials within factories - Picking operations - Transporting between lines - Transporting heavy items up to 300kg - Labor-saving for repetitive transportation tasks - Reducing manpower in transportation processes carried out by multiple people - Electrification utilizing existing cage trolley operations
Detailed information
-
■TFS Sensor Tracking Detects the movement of the string and follows in that direction. Can be intuitively transported without the need for switch operation. ■Compatibility with Existing Operations By electrifying the cart itself, it easily integrates into existing loading and unloading flows. ■Custom Order Specifications In addition to standard sizes, it can accommodate custom specifications for size, load capacity, and shape (made to order).
