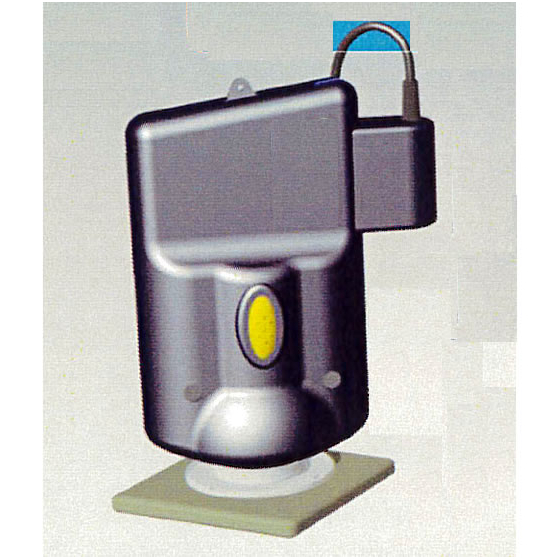

Compact and capable of simultaneous measurement of SCE/SCI without being location-dependent.
Equipped with a spectrometer, measuring the wavelength range from 380nm to 780nm at 5nm intervals.
Inquire About This Product
basic information
■Specifications Lighting/Receiving Conditions: Reflection Measurement de: 8° (JIS Z 8722 Geometric Condition c) di: 8° (JIS Z 8722 Geometric Condition c) Measurement Method: Full Wavelength Simultaneous Compensation Method, Post-Spectral Method Receiving Element/Spectral Method: CMOS Linear Image Sensor / Diffraction Grating Measurement Wavelength: 380nm to 780nm, output at 5nm intervals Light Source: White LED Measurement Time: Approximately 2 seconds for SCE or SCI single measurement Approximately 4 seconds for simultaneous SCE and SCI measurement *1 Operation Switch: Tact Switch Measurement Diameter: Choose from Φ8mm or Φ4mm sensor Size: Main Unit Only: 60mm(W) × 80mm(D) × 135mm(H) Size: When Cable Connected: 60mm(W) × 105mm(D) × 135mm(H) Weight: 350g Power Supply/Power Consumption: Supplied via dedicated communication cable connected to PC Maximum 4W or less (2W or less in standby) *Please connect to a USB connector capable of supplying 5V 0.9A. Control: Controlled by dedicated software on a computer or tablet Interface: Dedicated connection connector Related Standards: Color: JIS Z8722, JIS Z8781-4, JIS Z8781-6, etc.
Price range
Delivery Time
Applications/Examples of results
■Supports measurement of wet samples and curved samples By using optional attachments, it can accommodate a variety of sample measurements. ■Two measurement diameters available: 8mm and 4mm You can choose the measurement diameter according to the size of the sample. *Switching measurement diameters cannot be done with a single sensor. ■Measurement possible with a variety of color parameters Equipped with a wide range of color parameters. Visual characteristics can be grasped instantly in bulk. ■Enhanced color management through dedicated software Equipped with various functions such as data lists and various graph displays. Output to Excel is also possible.
