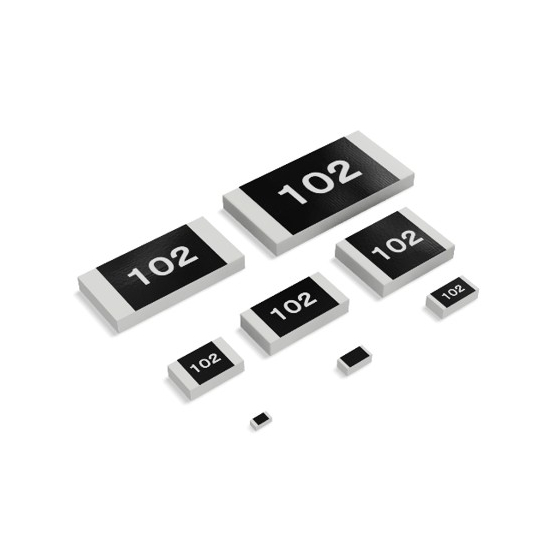

[AEC-Q200 compliant] Automotive and industrial equipment compatible thick film chip resistors "CR Series" | 8 shapes from ultra-small size to high power support.
**Thick Film Chip Resistors that Meet Diverse Needs in Circuit Board Design** The "CR Series" is a general-purpose thick film chip resistor that employs a metal glaze thick film resistive element and a three-layer electrode structure, achieving high long-term reliability and environmental resistance. It complies with the automotive component standard "AEC-Q200," making it suitable for a wide range of electrical devices, from automotive ECUs that require high robustness to industrial equipment, home appliances, and consumer electronics. **Features of the "CR" Series** 1. **AEC-Q200 Compliance**: Meets strict automotive reliability testing standards, maintaining stable electrical characteristics even in harsh operating environments. 2. **High Reliability with Three-Layer Electrode Structure**: Utilizes a highly reliable metal glaze thick film resistive element and a three-layer plated electrode structure. 3. **Available in 0201 to 8 Sizes**: Offers a lineup of all eight sizes, including 0201 (0603mm), 0402, 0603, 0805, 1206, 1210, 2010, and 2512 (6432mm). 4. **High Precision ±0.5% Tolerance**: Supports a wide range of grades with resistance value tolerances of ±0.5% (D), ±1% (F), ±2% (G), and ±5% (J). 5. **Compatible with Both Reflow and Flow Soldering**: Excellent solder heat resistance, compatible with both reflow and flow mounting processes. *For requests to download catalogs and specifications, please visit the URL below.*
Inquire About This Product
basic information
Expansion sizes (inches): 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 (total of 8 shapes) External dimensions (mm): L: 0.60～6.30 × W: 0.30～3.20 × T: 0.23～0.70 Rated power: 0.05W ～ 1.0W Rated current (jumper): 0.5A ～ 2.0A Maximum operating voltage: 25V ～ 200V Maximum overload voltage: 50V ～ 400V Resistance temperature coefficient (T.C.R.): 0 ～ +800 ppm/℃, ±400 ppm/℃, ±350 ppm/℃, ±250 ppm/℃, ±200 ppm/℃, ±100 ppm/℃ Resistance value range (general products): 0.22 Ω ～ 22 MΩ Resistance value range (jumper): Below 50 mΩ Resistance value tolerance: D (±0.5%), F (±1%), G (±2%), J (±5%) Operating temperature range: -55 ℃ ～ +125 ℃ / +155 ℃ Compliance standards/environment: AEC-Q200 compliant, RoHS directive compliant Common lineup for jumper type (rated current 0.5A～2.0A) *Requests for downloading catalogs and specifications can be made from the above URL.
Price range
Delivery Time
Applications/Examples of results
● Automotive electronic devices (AEC-Q200 compliant) • Automotive ECU (engine and body control boards) • Infotainment systems and car navigation • Various automotive sensors and LED lighting boards ● Industrial electronic devices and infrastructure • Factory automation (FA) equipment, PLCs, and industrial robot boards • Power conditioners, measuring instruments, and inspection devices • Communication infrastructure equipment and power units ● Consumer and home appliances in general • Air conditioning units and white goods control boards • AV equipment, smart home devices, and various power circuits *For requests to download catalogs and specifications, please contact us through the above site. Feel free to reach out for any other inquiries as well.*
