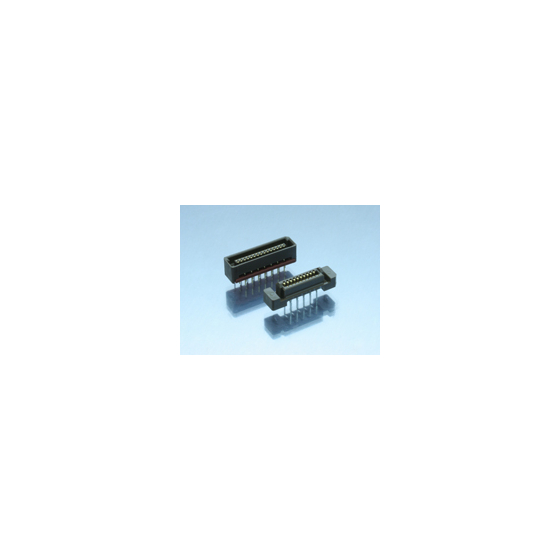

89 series that achieves high-density mounting and high connection reliability.
In the field of medical devices, as miniaturization and high functionality progress, there is a demand for high-density mounting and stable connection reliability in limited spaces. This is particularly important in ultrasound diagnostic devices, where it is crucial to efficiently arrange numerous electronic components and circuit boards while ensuring stable signal transmission. The 89 series is a 1.27mm pitch two-piece connector that achieves a compact and low-profile design. Its follow-up point contact structure ensures high connection reliability, making it suitable for medical devices that require high-density mounting. It has a proven track record in ultrasound diagnostic devices, contributing to the miniaturization of equipment and stable connections. 【Usage Scenarios】 - Ultrasound diagnostic devices - Medical imaging processing devices - Inter-board connections within medical devices - Medical devices requiring miniaturization 【Benefits of Implementation】 - Increased design flexibility due to miniaturization and lightweight - Maintenance of measurement accuracy through stable signal transmission - Improved equipment reliability and reduced maintenance costs - Support for high-density mounting
Inquire About This Product
basic information
【Features】 - The smallest and lowest-profile connector in half-pitch - Reliable connection through a follow-up single-point contact - Easy mating with a guiding mechanism - Improved efficiency in board mounting with SMT compatibility - A wide lineup with stack heights of 7 to 12mm and pin counts ranging from 20 to 120 【Our Strengths】 Since its founding, KEL has been a dedicated manufacturer of industrial connectors, providing products that meet the demands of the next generation through dialogue with our customers. As the miniaturization and high functionality of electronic devices progress, we continue to pursue excellent connection reliability and high functionality. We actively accommodate custom requests tailored to customer needs, and we can provide solutions from connectors to racks as a complete system.
Price information
-
Delivery Time
Applications/Examples of results
−
catalog（1）
Download All Catalogs
Company information
Since its founding, KEL has been a dedicated manufacturer of industrial connectors. This history is one of continuously pursuing excellent connection reliability and high functionality as electronic devices have become smaller and more advanced. What KEL values most is dialogue with customers. Through close communication, we clarify the needs that customers must address and the demands that connect to the next generation. Furthermore, by independently engaging in R&D activities, we at KEL have consistently provided products that are one step ahead. For the brilliant future that electronics will create, KEL will continue to deliver cutting-edge technology proposals and high-functionality products in the field of connection technology. KEL responds to the rapidly advancing technology and market environment with creativity. We hope you will continue to expect our advanced capabilities and responsiveness.
