Support for installation work of household air conditioner outdoor units at high locations - Outdoor unit lifting device Air Conditioner Hoist <HA-80-5A>

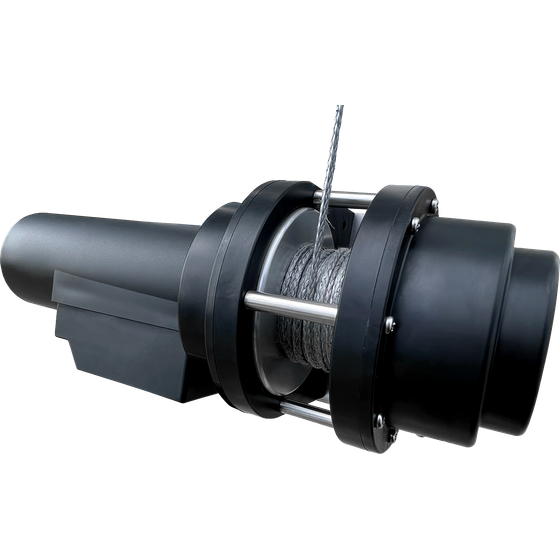

This device was developed using the technology of Miyamae Co., Ltd., a group company that has led the professional (fishing) market for over 50 years with its "large fish fishing electric reel." <Main Features> 1. By simply attaching a compact lightweight hoist weighing 4 kg and a pulley attachment (included) to a two or three-step ladder used in construction, you can easily lift and lower an air conditioning outdoor unit to the desired installation location. ■ Reliable design with a maximum lifting load of 80 kg (due to the principle of pulleys, the load on the ladder steps is approximately twice the weight of the outdoor unit, so the lifting weight will vary depending on the load capacity of the ladder used.) ■ Lifting height of approximately 5 m ■ A brake with an anti-slip structure that can stop at the desired location and will reliably stop even if the battery runs out ■ Contributes to reduced construction time with a lifting speed of approximately 6 m/min ■ Compact lightweight hoist weighing 4 kg 2. Powered by an 18V battery for electric tools, eliminating the need for AC power. This product does not come with a battery. Please prepare a Makita genuine 18V lithium-ion battery BL1860B (6Ah) separately for use. When fully charged, it can be used approximately 40 times for a round trip of 3 m.
Inquire About This Product
basic information
Model Number: HA-80-5A Power Supply: This product does not come with a battery. Please prepare a genuine Makita 18V lithium-ion battery (BL1860B 6Ah) separately for use. Capacity: Maximum lifting load 80kg * The lifting capacity varies depending on the load capacity of the ladder used. When the ladder's load capacity is 100kg, use within the range of 50kg; when it is 130kg, use within the range of 65kg. Rewind Speed: 6m/min (at maximum load) Rope: COATED DYNEEMA SK 78 (diameter 3.3mm) effective rope length 10m, actual usable rope length approximately 5m (lifting height) Remote Control Cable Length: Approximately 3m Lifting Height: Capable of lifting up to 5m above ground (when the height of the lifted object is 900mm) Compatible Ladders: JIS standard compliant products and SG mark certified 2-step and 3-step ladders - Total length up to 8.5m, thickness 40mm to 45mm, spacing (pitch) 300mm to 400mm Product Weight: Approximately 9kg
Price range
Delivery Time
Applications/Examples of results
Addressing the challenges faced by construction contractors, such as labor shortages due to the surge in installation requests during extreme heat. The introduction of this equipment is expected to shorten construction time and reduce labor, not only in areas with heavy snowfall or a risk of flooding but also when installing outdoor units on the second-floor walls or elevated platforms of houses.
