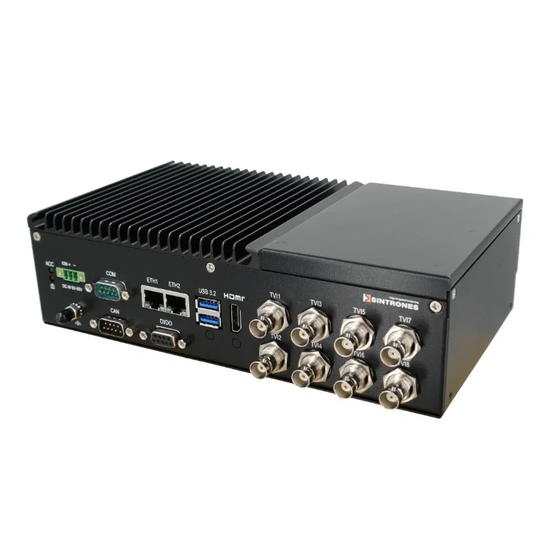

SINTRONES, equipped with NVIDIA Jetson Orin NX/Nano, fanless operation, extended temperature support, fully waterproof IP66.
【SINTRONES IBOX-603P-IP66-DP Features】 ■ Width 240 × Height 67.5 × Depth 150 mm ■ Equipped with NVIDIA Jetson Orin NX/Nano SoM ■ Option to choose Jetson Orin NX 16GB / 8GB ■ 4-port GbE PoE support (1 port max 15W, total 60W) ■ Equipped with 5 Ethernet ports (1 port on NVIDIA SoM side + 4 ports on Marvell Switch side) ■ Rugged design compliant with IP66 ■ Fanless design, operating temperature range of -25 to 70℃ ■ Supports a wide range of power input from DC12 to 48V ■ Ignition detection and Smart Power Management support ■ Equipped with 1 DisplayPort output, CAN FD, USB, RS-232/422/485, etc. ■ Supports WWAN, Wi-Fi/Bluetooth, NVMe storage expansion via M.2 slot ■ Vibration and shock resistance compliant with IEC 60068-2-64, MIL-STD-810H ■ Compatible with NVIDIA JetPack 6.2 and later
Inquire About This Product
basic information
Specifications ■CPU: NVIDIA Jetson Orin NX 16GB / 8GB ■GPU: 1024 CUDA cores ■Memory: LPDDR5 16GB / 8GB ■Ethernet: GbE ×5 ■PoE: 4 ports, maximum 15W per port, total 60W ■Video Output: DisplayPort ×1 (Native DisplayPort, DP++ not supported) ■USB: USB 3.2 ×1, USB 2.0 ×2, USB Type-C ×1 (for system recovery only) ■CAN: CAN FD ×1 ■COM: RS-232/422/485 ×1 (optional) ■Power Supply: DC12–48V (tolerance range DC10–57V) ■Operating Temperature: -25–70℃ (at 0.6m/s airflow) ■Protection Rating: IP66 ■Mounting: Wall mount ■Weight: Approximately 2.1 kg ■OS: NVIDIA JetPack 6.2 or later (including Jetson Linux and NVIDIA development tools) ■Certification: CE, FCC Class A, UKCA, IEC 62368-1
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
Computing systems for vehicles, onboard machines, factory and building automation/surveillance systems.
