The outdoor unit can be stably raised and lowered to high wall-mounted brackets or elevated platforms.

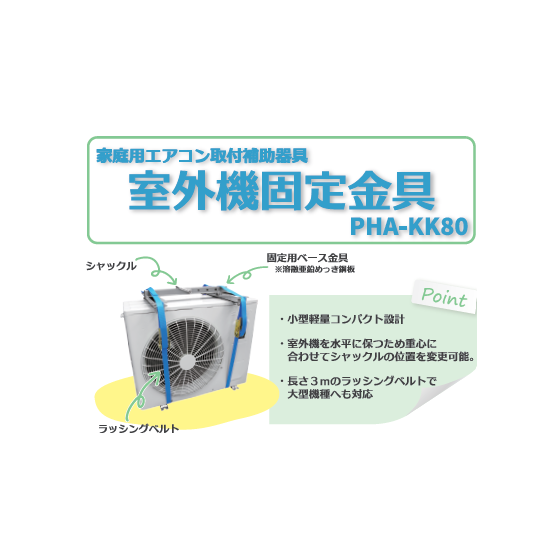

The ＜PHA-KK80＞ is mounted on the top of the air conditioning outdoor unit with a lashing belt, and by adjusting the position of the shackle to match the center of gravity of the lifted outdoor unit, it maintains a level position, allowing for stable ascent and descent of the outdoor unit to high wall-mounted brackets or elevated platforms. *We recommend using it together with the air conditioning hoist ＜HA-80-KK＞, which has been released to reduce the burden of air conditioning installation work at high places due to snow and water damage measures, as well as to address the shortage of manpower caused by a surge in installation requests during extreme heat.
Inquire About This Product
basic information
Product Name: Air Conditioner Outdoor Unit Mounting Bracket Model Number: PHA-KK80 Mounting Bracket: Welded Galvanized Steel Plate Shackle: Stainless Steel Lashing Belt: Width: 25mm, Length: 3mm Maximum Load Capacity: 65Kg Compatible Outdoor Unit Size: Width: 675mm - 900mm Depth: 284mm - 350mm Height: 550mm - 780mm
Price range
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
When using it to lift the outdoor unit of an air conditioner, you can maintain a level position by adjusting the shackle's position according to the center of gravity of the outdoor unit, allowing for stable elevation to high wall-mounted brackets or elevated platforms. *This air conditioner hoist, <HA-80-KK>, which was released to alleviate the burden of air conditioner installation work at high places due to snow and water damage measures, as well as to address the shortage of manpower resulting from the surge in installation requests during extreme heat, has received positive feedback when used together with it, making it even easier to use.
Detailed information
-
When used in combination with the separately sold air conditioner hoist (HA-80-KK), the lifted cargo will be stable.
-
Structure diagram
catalog（2）
Download All Catalogs
