AC adapter for home appliances in the 6W class. For power selection and specification consultation based on requirements.

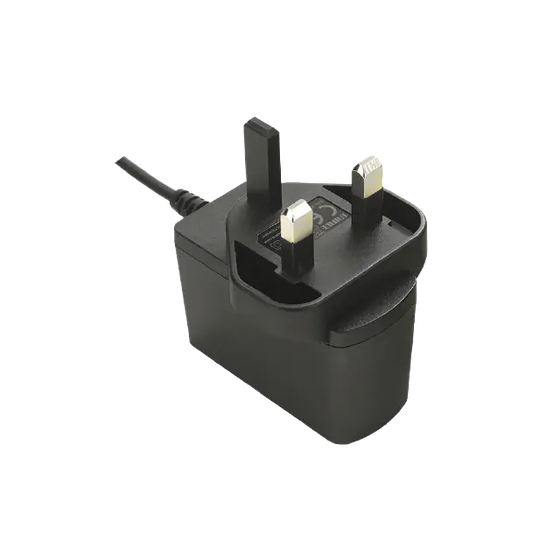

UHK305 Household AC Adapter The UHK305 is a 6W household AC adapter. It is designed specifically for use with household appliances and complies with IEC61558 and IEC60335 standards. Despite its compact size, it achieves high efficiency that meets DOE VI standards. Additionally, modifications to meet specific requirements such as surge protection and extended lifespan are possible. Starting from the standard model, you can consult us for power selection, specification adjustments, and customizations tailored to your requirements. Availability, specifications, quantities, and delivery times will be confirmed individually. For detailed conditions and product catalog, please check the official product page linked in the related links.
Inquire About This Product
basic information
【Standard Specifications】 Power Rating: 6W Input Voltage Range: 90V–264V DC Output Ratings: 5.0V/0.5A 5.0V/0.8A 5.0V/1.0A 5.0V/1.2A 5.6V/0.5A 5.6V/0.6A 5.9V/0.85A 5.9V/0.5A 5.9V/0.6A 7.5V/0.8A 5.9V/1.0A 8.5V/0.7A 8.5V/0.5A 9.0V/0.5A 8.6V/0.6A 12.0V/0.25A 9.6V/0.2A 13.0V/0.45A 12.0V/0.5A 18.0V/0.3A 15.0V/0.4A 24.0V/0.25A 24.0V/0.2A Dimensions: 59*49.2*46.8 Standards (as displayed on official page): CB, CE, DOE VI, UKCA For details on applicable model numbers, output conditions, and scope of application, please inquire individually. The specifications listed are reference specifications for the standard model.
Price information
Individual estimates based on specifications, quantity, and custom details.
Delivery Time
※It varies depending on quantity, specifications, and evaluation criteria. Please consult us individually.
Applications/Examples of results
To customers considering the selection and introduction of AC adapters for home appliances: Please provide the required specifications such as output voltage, current, operating environment, terminals, cables, and necessary standards. We can discuss specification adjustments, customizations, sample evaluations, and quotes. We will confirm the feasibility on a case-by-case basis.
