15W class medical AC adapter. For power selection and specification consultation based on requirements.

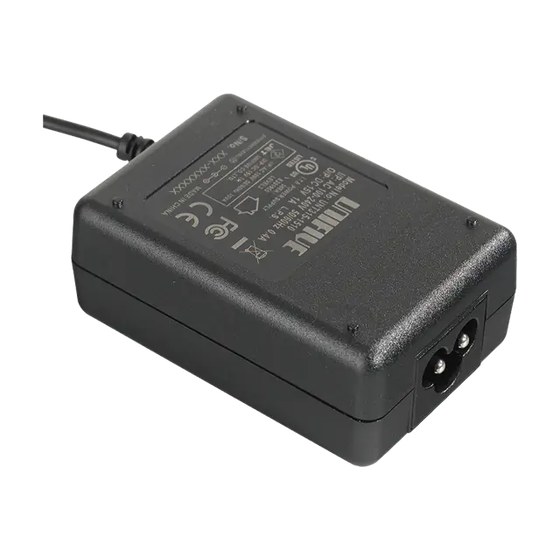

UMDNB3050 is a 15W AC adapter specifically designed for medical devices, featuring a compact design with a 3-pole AC inlet. It complies with 2MOPP for patient protection and 2xMOOP for operator protection. Additionally, it is certified to IEC60601-1 and PSE standards. You can consult us for power selection, specification adjustments, and customizations based on the standard model to meet your specific requirements. Availability, specifications, quantities, and delivery times will be confirmed individually. For detailed conditions and product catalogs, please check the official product page linked in the related links.
Inquire About This Product
basic information
【Standard Specifications】 Power Rating: 15W Input Voltage Range: 90V–264V DC Output Ratings: 5.0V/2.5A 5.9V/2.3A 5.9V/2.5A 9.0V/1.6A 12.0V/1.2A 15.0V/1.0A 18.0V/0.8A 18.0V/0.83A 24.0V/0.65A Dimensions: L:75.0 W:50.6 H:29.8/mm (IEC 320 C6) Standards (as displayed on the official page): PSE, CB, CE, DOE VI, FCC, UL-parts, UKCA For specific model numbers, output conditions, and applicable ranges, please inquire individually. The specifications listed are for reference for the standard model.
Price information
Individual estimates based on specifications, quantity, and custom details.
Delivery Time
※It varies depending on quantity, specifications, and evaluation criteria. Please consult us individually.
Applications/Examples of results
To customers considering the selection and introduction of medical AC adapters: Please provide the required specifications such as output voltage and current, operating environment, terminals and cables, and necessary standards. We can discuss specification adjustments, customization, sample evaluation, and quotations. We will confirm the feasibility on a case-by-case basis.
Company information
Unifive Corporation is a power supply manufacturer with over 35 years of experience. We take pride in having the industry's leading product lineup and provide high-performance, compact, and low-cost AC adapters and board switching power supplies to electronics companies in Japan and around the world. We cater to a wide range of applications, from industrial and telecommunications to consumer electronics and medical use, offering consistent support from design and development to production and after-sales service. We can propose solutions from general models to fully customized options, flexibly accommodating both small and large orders. We create approximately 1,500 sample models annually upon order and ship around 15,000 units as samples each year, providing optimal power supply solutions tailored to our customers' specifications. Furthermore, we comply with various safety standards, including PSE, and strongly support global expansion. - Various factory certifications obtained - Compliance with safety standards in various countries - Medical standards obtained
