24W class medical AC adapter. For power selection and specification consultation based on requirements.

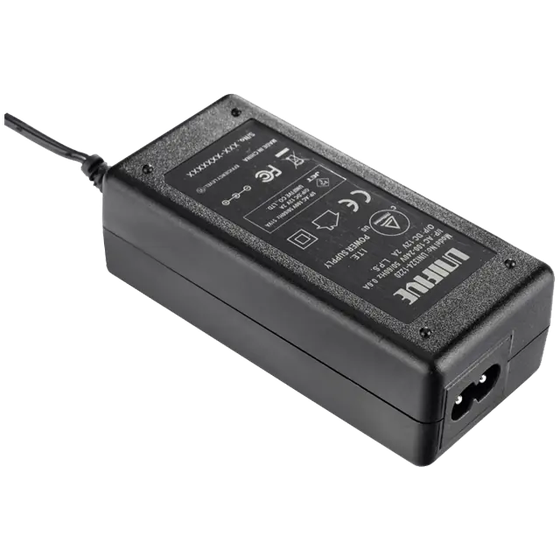

UMDNI3024 is an inlet-type AC adapter for medical devices with a 24W output. It is an ideal power solution for a wide range of medical equipment, including small medical devices and home healthcare devices. This high-reliability model fully meets the safety standards of 2xMOPP (patient protection) and 2xMOOPP (operator protection). It is a highly safe product compliant with the IEC60601-1-2 standard and has obtained PSE certification, equipped with various protection features. It conforms to international energy efficiency standards such as the European ErP Lot7, achieving high energy-saving performance. We cater to diverse customer needs, offering flexible customization for small lots and specification changes based on standard products. We provide optimal solutions for special requirements in medical applications, so please feel free to contact us. Starting from the standard model, you can consult us about power selection, specification adjustments, and customizations tailored to your requirements. Availability, specifications, quantities, and delivery times will be confirmed individually. For detailed conditions and product catalogs, please check the official product page linked in the related links.
Inquire About This Product
basic information
【Standard Specifications】 Supported Power: 24W Input Rating: 90V～264V DC Output Ratings: 5.9V/3.0A 9.0V/2.6A 12.0V/2.0A 15.0V/1.6A 24.0V/1.0A Dimensions: L:98.5 W:46.8 H:32.1/mm Standards (as displayed on official page): PSE, CE, DOE VI, FCC, UKCA For specific model numbers, output conditions, and applicable ranges, please inquire individually. The specifications listed are reference specifications for the standard model.
Price information
Individual estimates based on specifications, quantities, and custom details.
Delivery Time
※It varies depending on quantity, specifications, and evaluation criteria. Please consult us individually.
Applications/Examples of results
To customers considering the selection and introduction of medical AC adapters: Please provide the required specifications such as output voltage and current, operating environment, terminals and cables, and necessary standards. We can discuss specification adjustments, customizations, sample evaluations, and quotes. We will confirm the feasibility on a case-by-case basis.
Company information
Unifive Corporation is a power supply manufacturer with over 35 years of experience. We take pride in having the industry's leading product lineup and provide high-performance, compact, and low-cost AC adapters and board switching power supplies to electronics companies in Japan and around the world. We cater to a wide range of applications, from industrial and telecommunications to consumer electronics and medical use, offering consistent support from design and development to production and after-sales service. We can propose solutions from general models to fully customized options, flexibly accommodating both small and large orders. We create approximately 1,500 sample models annually upon order and ship around 15,000 units as samples each year, providing optimal power supply solutions tailored to our customers' specifications. Furthermore, we comply with various safety standards, including PSE, and strongly support global expansion. - Various factory certifications obtained - Compliance with safety standards in various countries - Medical standards obtained
