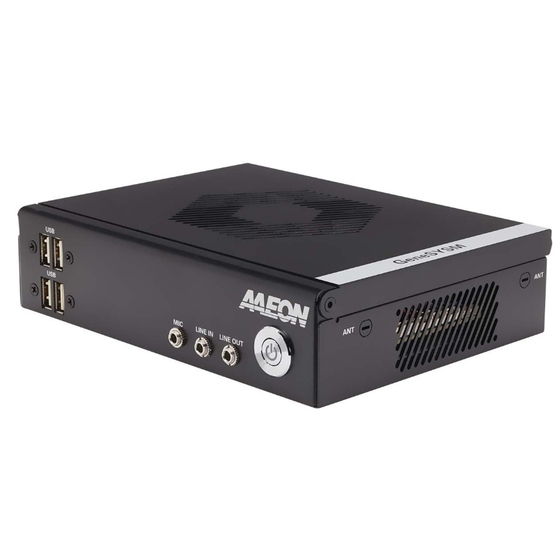

AAEON Intel N150 equipped 3.5-inch standard edge PC
Features: ● Compatible with Intel Core Processor N series and Intel Processor N series ● Supports DDR5 4800MHz dual channel, SO-DIMM×1 (up to 16GB) ● Supports dual display output with DisplayPort×1 and HDMI×1 ● M.2 2280 M-Key×1, M.2 2230 E-Key×1 ● USB 3.2 Gen 2×2, USB 2.0×4 ● 2.5GbE LAN×2 ● SATA 6Gb/s×1 ● Full-size mPCIe/mSATA×1 * This model does not include memory, storage, or OS.
Inquire About This Product
basic information
【CPU】Intel Processor N150 【Memory】DDR5-4800 SO-DIMM×1 Non-ECC (up to 16GB) (sold separately) 【Storage】M.2 2280 M-Key×1 (PCIe 3.0 x2), mSATA×1, SATA 6Gb/s (sold separately) 【Expansion Slot】M.2 2230 E-Key×1 【I/O】HDMI 1.4b×1, DP 1.4a×1, USB 3.2 Gen 2×2, 2.5GbE LAN×2, USB 2.0×4, RS-232/422/485×2 【Supported OS】Windows 11 64bit, Ubuntu 24.04.2 【Input Power】DC 12V 【Dimensions (mm)】178×134.1×44 【Operating Temperature】0–50℃ 【Operating Humidity】0–90% (without condensation) 【Certification】CE, FCC Class A *This model does not include an operating system.
Price range
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（1）
| Model number | overview |
|---|---|
| GENESYSM-TWL7-P001 | Intel Processor N150,HDMI x 1,DP x 1,2.5GbE x 2,USB 3.2 Gen 2 x 2,USB 2.0 x 4,RS232/422/485 x 2,SATA x 1,M.2 2230 E-Key x 1,M.2 2280 M-Key x 1,Mini Card x 1,TPM 2.0,12V,0～50℃。 |
