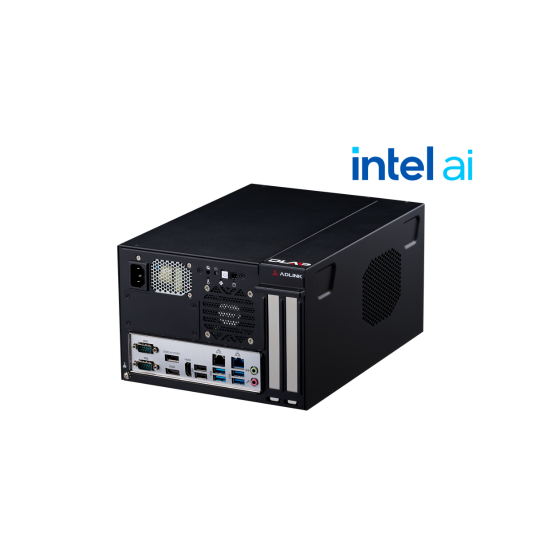

DLAP series for edge AI, equipped with 2nd generation Core 200S/14th generation CPU, capable of supporting MXM graphics modules.
**ADLINK DLAP-5200 Series Features** ■ Dimensions: 240mm (W) x 125mm (H) x 210mm (D), 6.3 liters ■ 2nd Generation Core 200S / 14th/13th/12th Generation Core i9/i7/i5/13 CPUs ■ Memory: DDR5 SO-DIMM (up to 196GB) ■ ADLINK MXM 3.1 Graphics Module Support (Type A/B) ■ Display: 6 or 3 DP, 2 HDMI ■ I/O Connectors: 6 or 3 2.5GbE, 4 USB3.2 (Gen2), 2 USB3.1 (Gen2), 3 or 2 COM ■ Expansion Slots: M.2 2280 M-key x 1, M.2 2230 E-key x 1 ■ Operating Temperature: DLAP-5200-3DP: -20 to 50°C (35W CPU) DLAP-5200-6DP: -20 to 40°C (65W CPU)
Inquire About This Product
basic information
Specifications ■CPU: 2nd Generation Core 200S / 14th / 13th / 12th Generation Core i9/i7/i5/13 ■Chipset: R680E ■Memory: DDR5-4800MHz SODIMM x 4, Maximum 196GB ■PEG Card Support: NVIDIA Ampera A4500, A2000, ADA2000 ■Storage: 2.5" SSD x 2 ■I/O Connectors: - DLAP-5200-3DP 2.5GbE(i225)(TSN compatible) x 6, USB3.2(Gen2) x 4, USB3.1(Gen2) x 2, RS-232/422/485 x 2, DP 1.4 x 3 (1 MXM), HDMI 1.4b x 2 - DLAP-5200-6DP 2.5GbE(i225)(TSN compatible) x 3, USB3.2(Gen2) x 4, USB3.1(Gen2) x 2, RS-232 x 1, RS-232/422/485 x 2, DP 1.4 x 6 (4 MXM), HDMI 1.4b x 2 ■Input Power: DC 12-24V input (Optional 280W AC adapter)
Price information
Open price
Delivery Time
Applications/Examples of results
In-vehicle multimedia / machine control / factory and building automation / monitoring systems
Line up（5）
| Model number | overview |
|---|---|
| DLAP-5209RF-3DP/M32G/1TB/S4TB/A4500 | Core i9-14000 CPU, 32GB DDR5 memory, 4TB SSD + 1TB NVMe, MXM A4500 |
| DLAP-5209R-6DP/M32G/S512G/A2000 | Core i9-13900E CPU, 32GB DDR5 memory, 512GB SSD, MXM A2000 |
| DLAP-5207R-6DP/M32G | Core i7-13700E CPU, 32GB DDR5 memory |
| DLAP-5207-3DP/M64G/2xS2TB/A2000 | Core i7-12700E CPU, 64GB DDR5 memory, 2TB SSD x 2, MXM A2000 |
| Option | 280W Industrial AC Adapter |
catalog（1）
Download All Catalogs
