ADLINK, N97 series and Atom x series compatible, fanless, robust design capable of 24/7 operation.

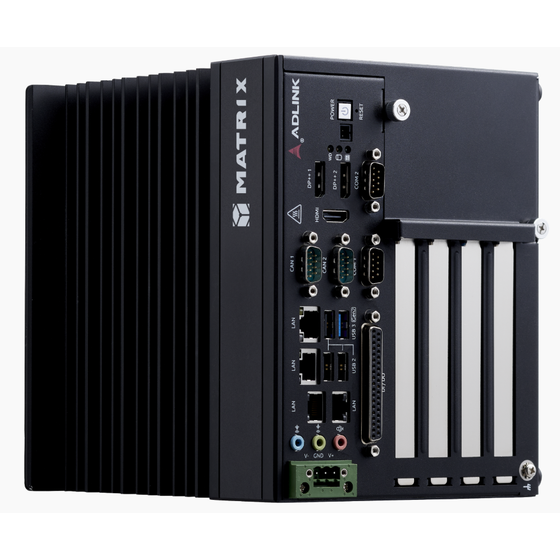

【ADLINK MXC-3340 Features】 ■ Width 142 × Height 210 × Depth 219 mm, 6.53 liters ■ Fanless N97 series and Atom x series CPU ■ Memory DDR5 SO-DIMM (up to 16GB) ■ Display 2 DP1.4, 1 HDMI2.0 ■ I/O Connectors 4 GbE, 1 USB3.0, 3 USB2.0, 2 COM, 2 CAN ■ Expansion Slots M.2 B Key 3042 x 1, M.2 M Key 2280 x 1, M.2 E Key 2230 x 1, 1 PCIe[x8] + 2 PCIe[x4] ■ Operating Temperature Range -20 to 60℃ ■ Rugged, vibration-resistant, cableless design ■ Wide DC input 9V to 36V
Inquire About This Product
basic information
Specifications ■CPU: N97 2GHz (Options: N200 1GHz/N50 1GHz/Atom X7835 3.6GHz/X7425 1.5GHz) ■Memory: 8GB DDR5-4800MHz SODIMM x 1, maximum 16GB ■Storage: SATA-III 2.5" HDD/SSD x 1 ■I/O Connectors: GbE x 4 (i210IT)(RJ-45), USB3.0(1A, 5Gbps) x 1 + USB2.0 x 3, RS-232/422/485 x 2 (isolated 1.5KV)(DB9), CAN with SjA1000 CAN controller x 2 (isolated 1.5KV)(DB9), DP 1.4 x 2, HDMI 2.0 x 1, Audio Mic in, Line in, Line out, DIO 8 DI + 8 DO (isolated 1.5KV) ■Input Power: DC 9–36V input (Optional 160W AC adapter) ■Operating Temperature: -20 to 60℃ (with 0.6m/s airflow) ■Certification: CE & FCC Class B
Price information
Open price
Delivery Time
※It may vary depending on quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| MXC-3301/M8G | N97 2GHz CPU, 8GB DDR5 memory |
| MXC-3341/M8G | N97 2GHz CPU, 8GB DDR5 memory, 1 PCIe[x8] + 2 PCIe[x4] |
| Option | 160W Industrial AC Adapter |
