Microbubble and Nanobubble Generation Device YJ Nozzle for the Chemical Industry
YJ-6、YJ-9、YJ-15、YJ-21、YJ-32、YJ-40、YJ-52
Difficult-to-decompose treatment, micro-nanobubble generation device that promotes chemical reactions.
Are you struggling with the treatment of non-degradable wastewater? In the chemical industry, there is always a demand for improved reaction efficiency and process optimization. In particular, enhancing reaction rates and achieving uniform reactions are critical challenges that directly relate to increased productivity and cost reduction. Traditional methods of promoting reactions have faced issues such as time and cost burdens or difficulties in achieving uniform effects. The YJ nozzle leverages the properties of micro and nano bubbles to enhance the dispersion of bubbles in the reaction medium, contributing to the promotion of chemical reactions. It also demonstrates maximum effectiveness in treating non-degradable wastewater through ozone microbubble treatment and advanced oxidation processes. 【Application Scenarios】 * Efficiency improvement in non-degradable wastewater treatment, achieving zero sludge (Ozack wastewater treatment system) * Streamlining chemical reaction processes * Promoting the dissolution of substances * Achieving uniform mixing and dispersion 【Benefits of Implementation】 * Enables the treatment of wastewater that cannot typically be processed * Reduces reaction time * Increases productivity * Enhances overall process efficiency
Inquire About This Product
Related Videos
basic information
**Features** * Operates with atmospheric (gas) suction like an ejector simply by being attached to a general-purpose pump * Large diameter straight pipe structure that is resistant to clogging * Usable with wastewater and sewage * Outstanding maintenance characteristics * High efficiency and large flow capacity with low pressure loss **Our Strengths** SPURT contributes to solving environmental issues with micro-nano bubble technology and wastewater treatment technology. As a specialized engineering company and trading firm for environmental equipment, we propose optimal products. Masashi Toyooka, President, Enviro Vision
Price range
Delivery Time
※The delivery time for the micro-nano bubble generator YJ nozzle varies depending on the product model, so please feel free to contact Enviro Vision Co., Ltd. for inquiries.
Applications/Examples of results
○ The microbubble and nanobubble generation device "YJ Nozzle" provides high-efficiency aeration in adjustment tanks and aeration tanks for wastewater treatment. ○ The microbubble and nanobubble generation device "YJ Nozzle" reduces odors in lake purification, dam lake purification, and underground pits. ○ The microbubble and nanobubble generation device "YJ Nozzle" supports sterilization treatment of ballast water using ozone microbubbles, as well as COD and BOD reduction and neutralization treatment using carbon dioxide. ○ The microbubble and nanobubble generation device "YJ Nozzle" is used as a line mixer for gas dissolution processes (also compatible with sanitary applications). ○ The microbubble and nanobubble generation device "YJ Nozzle" mixes steam microbubbles into water and is applied in steam mixers. ○ The microbubble and nanobubble generation device "YJ Nozzle" is utilized to promote the growth and maintain the freshness of aquatic and agricultural products. ○ The microbubble and nanobubble generation device "YJ Nozzle" is used in mixing nozzles for high-concentration oxygen water, ozone water, and high-speed oxidation reactions. ○ The microbubble and nanobubble generation device "YJ Nozzle" can be applied to various cleaning purposes (vegetable washing, washing machines, parts cleaning, etc.). ○ Microbubbles (various high-efficiency ozone sterilization) are also used in water purification plants and sewage treatment plants. ● For more details about the micro-nanobubble generation device YJ Nozzle, please contact us.
Line up（14）
| Model number | overview |
|---|---|

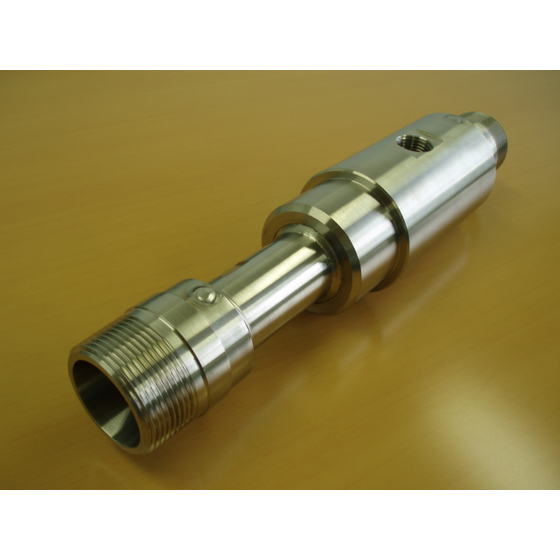

| YJ-6-inline | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: SUS304 |
| YJ-6-inline-PVDF | Required flow rate: 30L/min or more, Connection: 20A/both threads, Material: PVDF |
| YJ-9-inline | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: SUS304 |
| YJ-9-inline-PVDF | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: PVDF |
| YJ-15 | Required flow rate: 165L/min or more, Connection: 40A/one thread, Material: SUS304 |
| YJ-15-inline | Required flow rate: 165L/min or more, Connection: 40A/both threaded, Material: SUS304 |
| YJ-21 | Required flow rate: 330L/min or more, Connection: 50A/one thread, Material: SUS304 |
| YJ-21-inline | Required flow rate: 330L/min or more, Connection: 50A/both threaded, Material: SUS304 |
| YJ-32 | Required flow rate: 750L/min or more, Connection: 65A/one thread, Material: SUS304 |
| YJ-32-inline | Required flow rate: 750L/min or more, Connection: 65A/both threaded, Material: SUS304 |
| YJ-40 | Required flow rate: 1,150 L/min or more, Connection: 80A/one thread, Material: SUS304 |
| YJ-40-inline | Required flow rate: 1,150 L/min or more, Connection: 80A/both threaded, Material: SUS304 |
| YJ-52-F | Required flow rate: 2,000L/min or more, Connection: single flange, Material: SUS304 |
| YJ-52-inlineF | Required flow rate: 2,000L/min or more, Connection: both flanges, Material: SUS304 |
catalog（1）
Download All Catalogs
Company information
We are a trading company that meets environmental needs with excellent products such as the micro-nano bubble (fine bubble) generation device "YJ Nozzle," the wastewater treatment system "Ozack," and the parts cleaning system "Bio Circle," which allows for the reuse of cleaning liquids. We cover a wide range of environmentally friendly and original products, including micro-nano bubbles, aeration devices, measuring instruments, and anti-corrosion coatings, and we actively propose environmental technologies and products as a specialized trading company for environmental equipment.
